Executive Summary
The market has spent 2026 pricing the lasers. It has not yet mapped the layer that turns those lasers into links: the six foundries that can fabricate a silicon photonics PIC at scale. The layer is not unknown, it is unmapped, and that has created mispricing.
Three mispricings fall out of the map. STMicroelectronics is a merchant PIC supplier at roughly Tower’s scale, yet it does not appear on most foundry maps. GlobalFoundries’ claim to be the largest pure-play photonics foundry has already been overtaken by Tower on revenue. TSMC is usually modelled as a merchant foundry, but sells photonics only through its own SoIC bonding line.
Scarcity has already turned into prepayments. Tower took $290m in a single quarter to reserve 2027 capacity. STMicroelectronics is signing long-term agreements with cash advances. Soitec is signing multi-year reservation agreements with eight of its roughly ten major Photonics-SOI customers.
The layer splits by form factor, not technology. Pluggables are a merchant market, with three suppliers taking prepayments. Co-packaged optics is a captive market, with one supplier allocating bonding slots. Near-packaged optics is the contested middle, and it will determine where much of the value lands from 2028.

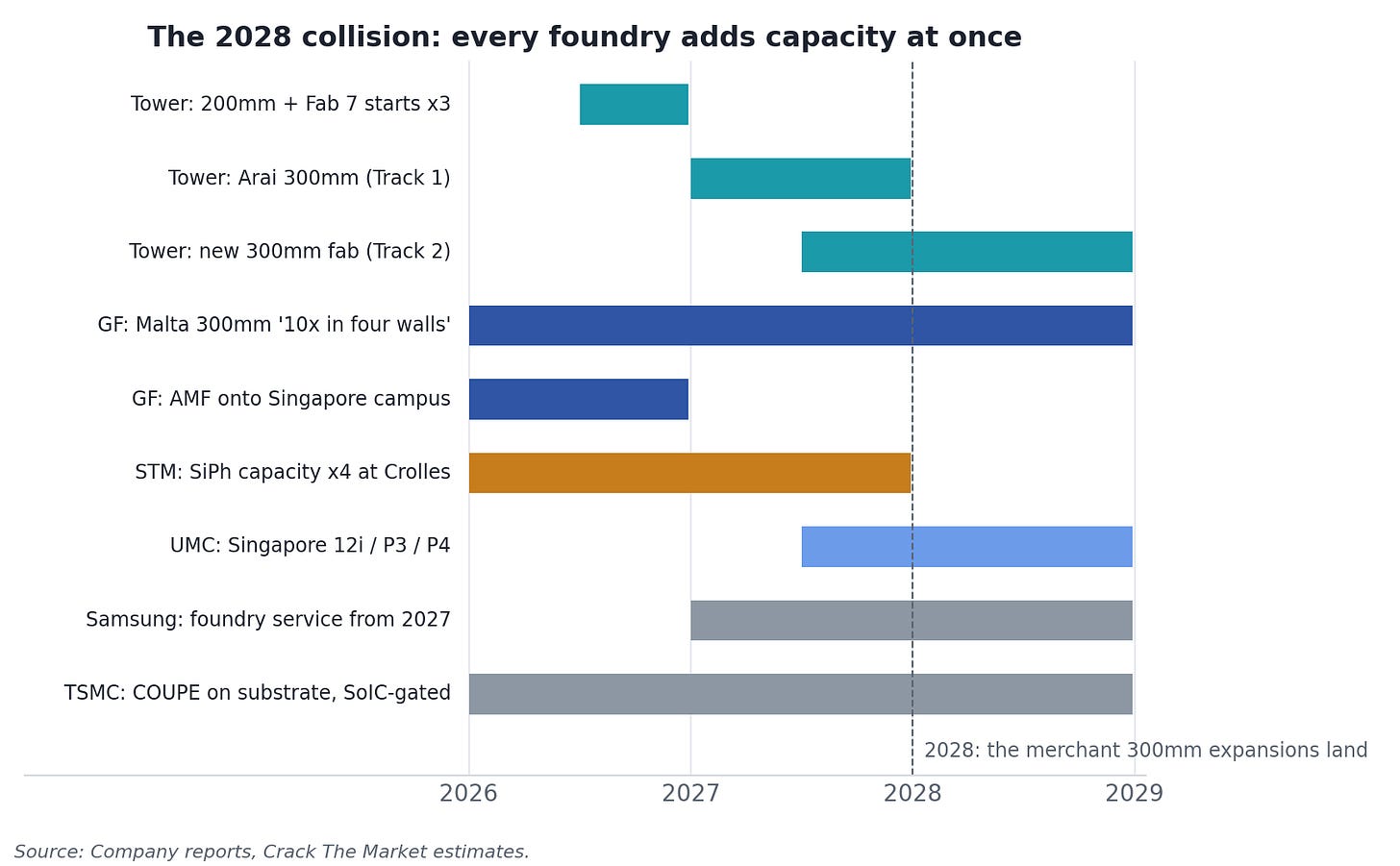

2028 is when the capacity wave arrives. Four merchant 300mm expansions are due to come through around the same period. On our base-case arithmetic, Tower’s Japan programme alone exceeds the industry’s 2030 wafer requirement. The risk is therefore wafer pricing, not fab capacity, and Tower’s CFO identifies it as the largest variable in its model.
Every one of those fabs leads back to the same substrate supplier. Soitec holds roughly 95% of 300mm Photonics-SOI and has guided the business to 2.5-3x last year’s level. Every 300mm expansion in this piece is, ultimately, a Soitec order.
The bottlenecks are not equally scarce. Our ranking, from hardest to substitute to easiest, is the substrate, InP lasers, SoIC bonding, merchant wafer starts and finally the epitaxy tools.
The conclusion is simple: the scarce asset is the capacity to fabricate the PIC. The scarcer asset is the wafer it is fabricated on.
Before this deep dive, I recommend reading some of our other write ups on the AI & Technology megatrend, and PhotonCap’s pieces that this collaboration builds on:
The investment case for the substrate every foundry in this piece buys from, and why the Photonics-SOI monopoly is tighter than the layer it feeds. Soitec: The Photonics Monopoly, Now At A Price That Works
The laser layer, where capacity is revenue and Nvidia has bought the right to ration it. This piece covers the chips that make the light. Today’s piece covers the chips that carry it. Coherent & Lumentum: The Laser Duopoly That Rations the Supercycle
The IDM that turns out to be the third merchant PIC supplier at Tower’s scale, with its datacenter numbers raised twice since. STMicroelectronics: Photonics, Satellites and Silicon Carbide
The European and US photonics stacks mapped end to end: Europe owns the tools and substrates, America owns the lasers, the silicon and the systems. The European Photonics Supercycle and The US Photonics Supercycle
PhotonCap’s piece on the first pricing signal in this cycle, which appeared at the foundry before the laser, and the starting framework for today’s map. Everyone Saw a Laser Shortage. The Money Went to the Foundries First.
PhotonCap on the fabless PIC designer Credo bought for $750m, and the foundry that makes its chips. A $750M Fabless Chip Company, and the Foundry That Makes the Chips
You can also read it through:
Table of Contents
Before we start: the vocabulary, and why this layer matters
The thesis
The map: who can fabricate a PIC today
Tower: the merchant leader, from 200mm PH18 to 300mm Japan
GlobalFoundries: 300mm monolithic scale, and what it ceded to TSMC
TSMC COUPE: quasi-captive through SoIC bonding
STMicroelectronics: the merchant PIC supplier the maps leave out
UMC, Samsung, Intel and the entrants
The European specialty layer
The layer beneath: substrates, InP and epitaxy
Who designs into which fab
Capacity arithmetic 2026-2028
Merchant versus captive: where the value lands
Where the thesis breaks

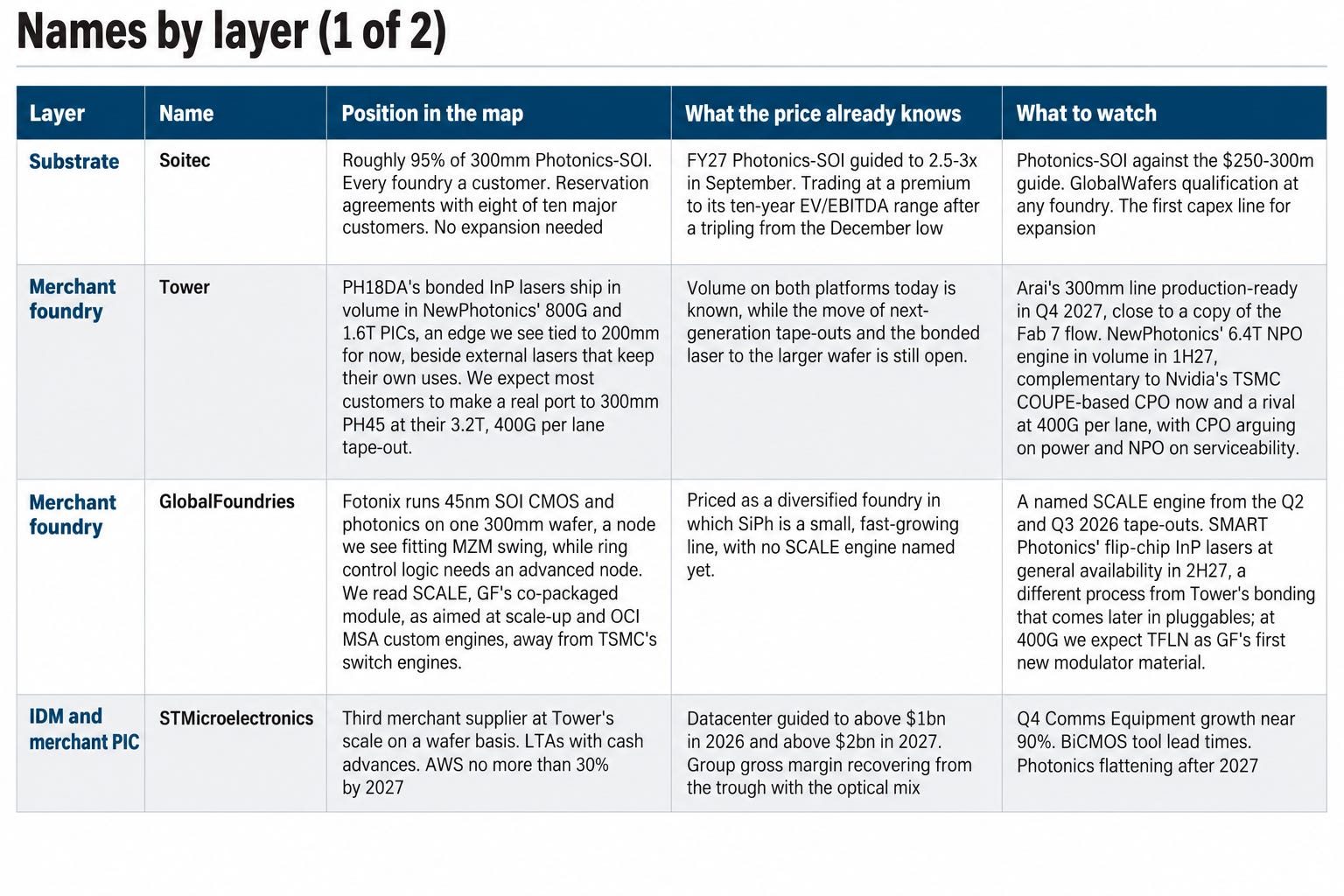

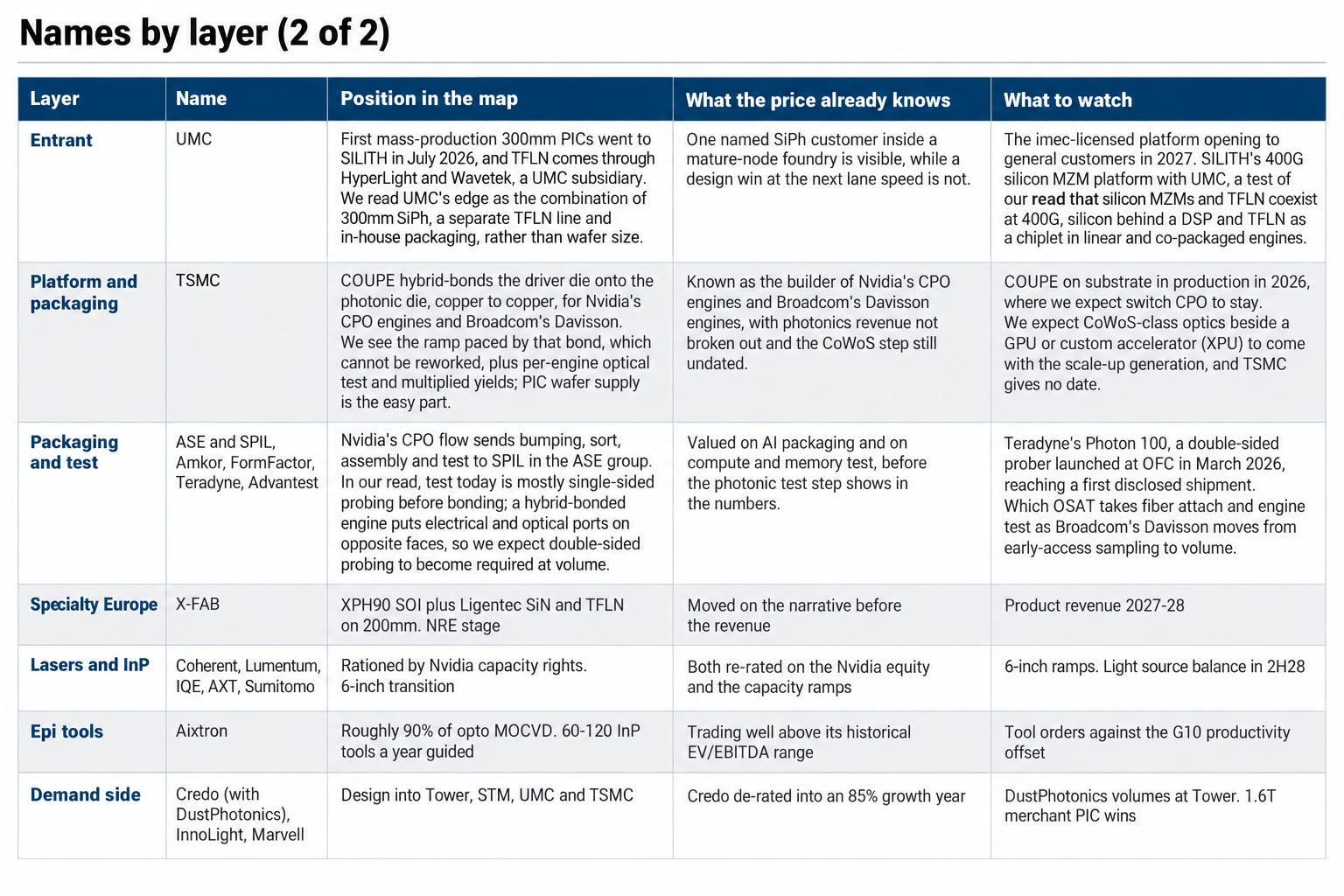

Names by layer
Conclusion
1. Before we start: the vocabulary, and why this layer matters
Every dollar of AI capex terminates in a requirement to move photons. That was the line in Coherent & Lumentum: The Laser Duopoly, and it is the reason this piece exists. The market has learned the laser story, the transceiver story and the Nvidia co-packaged optics story. It has not learned who fabricates the chip that sits in the middle of all three. This section is the ten-minute primer so that the rest of the piece can move at full speed.
The chip: what a PIC is
A photonic integrated circuit (PIC) is a silicon die that routes, modulates and detects light instead of electrons. Inside a modern AI transceiver it does three jobs: a waveguide carries the light, a modulator imprints the electrical data stream onto the continuous light coming from the laser, and a photodetector (usually III-V and germanium on silicon) turns received light back into current. Building it on standard silicon tooling is what the industry calls silicon photonics (SiPh).
The PIC is never alone. It sits beside an electronic integrated circuit (EIC), the analog front end: a driver for the modulator and a transimpedance amplifier (TIA) for the detector. A 3nm digital signal processor (DSP) sits alongside, and some of the newest DSPs build the driver in. The PIC also needs a laser, because silicon does not emit light. That laser is built on indium phosphide (InP), with its layers grown as stacked crystal films (epitaxy). In SiPh it sits beside the PIC as an always-on (continuous-wave, CW) source, and in parallel designs one laser feeds two to four lanes. An electro-absorption modulated laser (EML) puts laser and modulator on one InP chip, one per lane, and still ships in 200G-per-lane 1.6T modules. Fewer lasers per module is the main reason SiPh keeps winning parallel sockets (section 11).
The PIC and the chips around it ask very different things of a fab. A 3nm DSP prints its finest layers with extreme ultraviolet (EUV) scanners. A silicon waveguide is about half a micron wide, and its finest details run to about 140nm, printed with 193nm deep-ultraviolet light. The analog SiGe chip in a pluggable stays on mature nodes such as ST’s 55nm B55X. What the PIC needs is uniformity rather than small features: a ring modulator drifts off its colour of light when its width is a few nanometres wrong, so each ring carries a small heater. Otherwise a PIC runs down an ordinary CMOS line with a few photonics-only steps added: modulator implants, germanium detectors, silicon nitride and trenches to hold the fibre. GlobalFoundries runs Fotonix on the 45nm process it uses for digital chips, and Tower is repurposing its Arai fab for 300mm SiPh. So PICs come off lines that are largely paid for, with no EUV. That is why mature-node foundries such as Tower, GlobalFoundries and UMC can lead the PIC layer, and why TSMC’s advantage in photonics is bonding and packaging rather than lithography.
The wafer: what sits under the PIC
A SiPh PIC is not built on a plain silicon wafer. It needs a silicon-on-insulator (SOI) wafer with a thick buried oxide so that light stays confined in the top silicon layer. This grade of wafer is called Photonics-SOI, and as Ozeco set out in Soitec: The Photonics Monopoly and PhotonCap covered in The Wafer That Used to Roll Around My Lab Is Now an AI Data Center Bottleneck, it is made almost entirely by one company. Wafer size matters: 200mm lines are the legacy base of the industry, 300mm lines carry 2.25 times the die per wafer and are where every expansion in this piece is going.
The factory: foundry versus IDM, merchant versus captive
A foundry manufactures chips designed by other companies. A fabless company (InnoLight, Credo, Lightmatter, Ayar Labs) designs the PIC and buys wafers from a foundry. An IDM (STMicroelectronics, Intel, Samsung Electronics) designs and manufactures its own chips, and may also sell manufacturing to others. A process design kit (PDK) is the rulebook a foundry hands its customers, and it is the reason switching foundries is slow: a PIC designed for one PDK has to be redesigned for another, and requalified, which takes six to twelve months.
Merchant capacity is sold to any qualified customer. Captive capacity is reserved for one ecosystem, either because the foundry owns the design or because the chip only works inside that foundry’s packaging flow. The distinction is the spine of this piece, because the merchant foundries and the captive one are exposed to different customers, different form factors and different pricing.
The form factors: pluggable, NPO, CPO

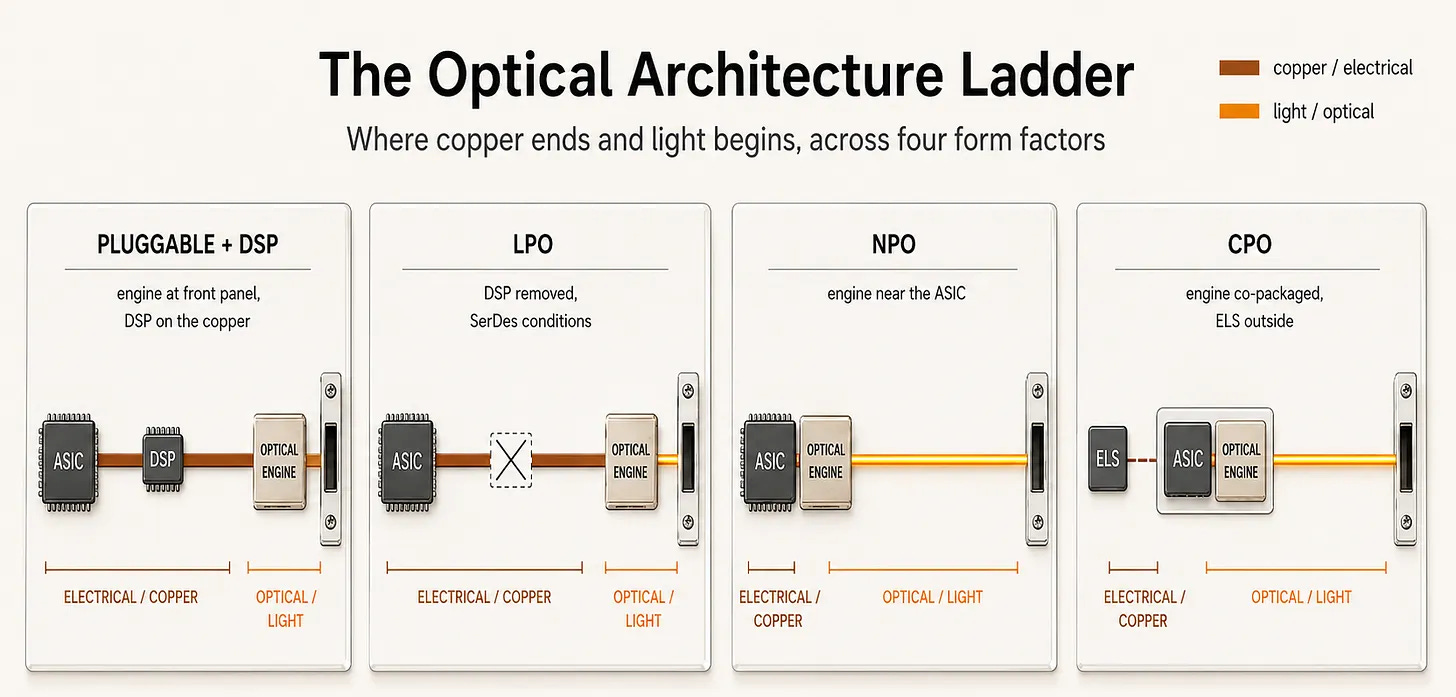

Optics reach a switch or a GPU in one of three ways. A pluggable transceiver is a module the size of a USB stick that slots into the front of a switch, today at 800G and 1.6T, tomorrow at 3.2T. Near-packaged optics (NPO) moves the optical engine onto the board next to the switch chip but keeps it removable. Co-packaged optics (CPO) bonds the optical engine onto the same package as the switch or GPU, which saves power and reach but makes the engine part of the chip package rather than a component. The foundry that makes a pluggable PIC sells a wafer to a module maker. The foundry that makes a CPO engine sells a packaging slot to a chip designer. PhotonCap covered the different architectures in DSP, LPO, NPO, CPO
Image Source: DSP, LPO, NPO, CPO

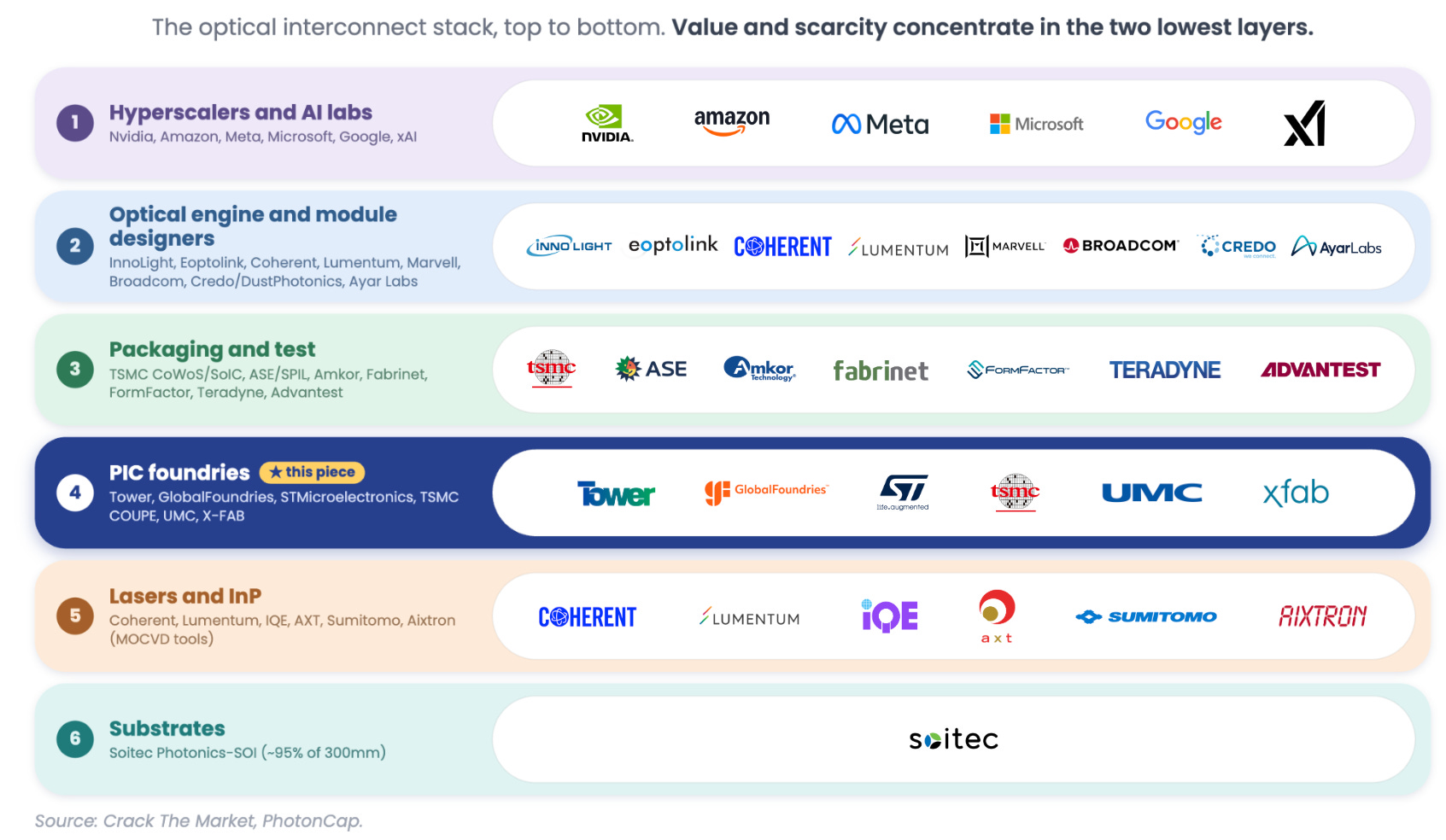

The stack, top to bottom
Why we are looking at this layer now
Three things changed in 2026 and none of them was about lasers:
Foundries started taking prepayments. Tower booked $290m of customer prepayments in a single quarter to reserve 2027 capacity. Soitec is signing multi-year capacity reservation agreements with eight of its roughly ten major Photonics-SOI customers. STMicroelectronics says a significant number of customers are asking for long-term agreements with cash advances. In semiconductors, customers only pay for capacity that does not yet exist when they believe it will not be there otherwise.

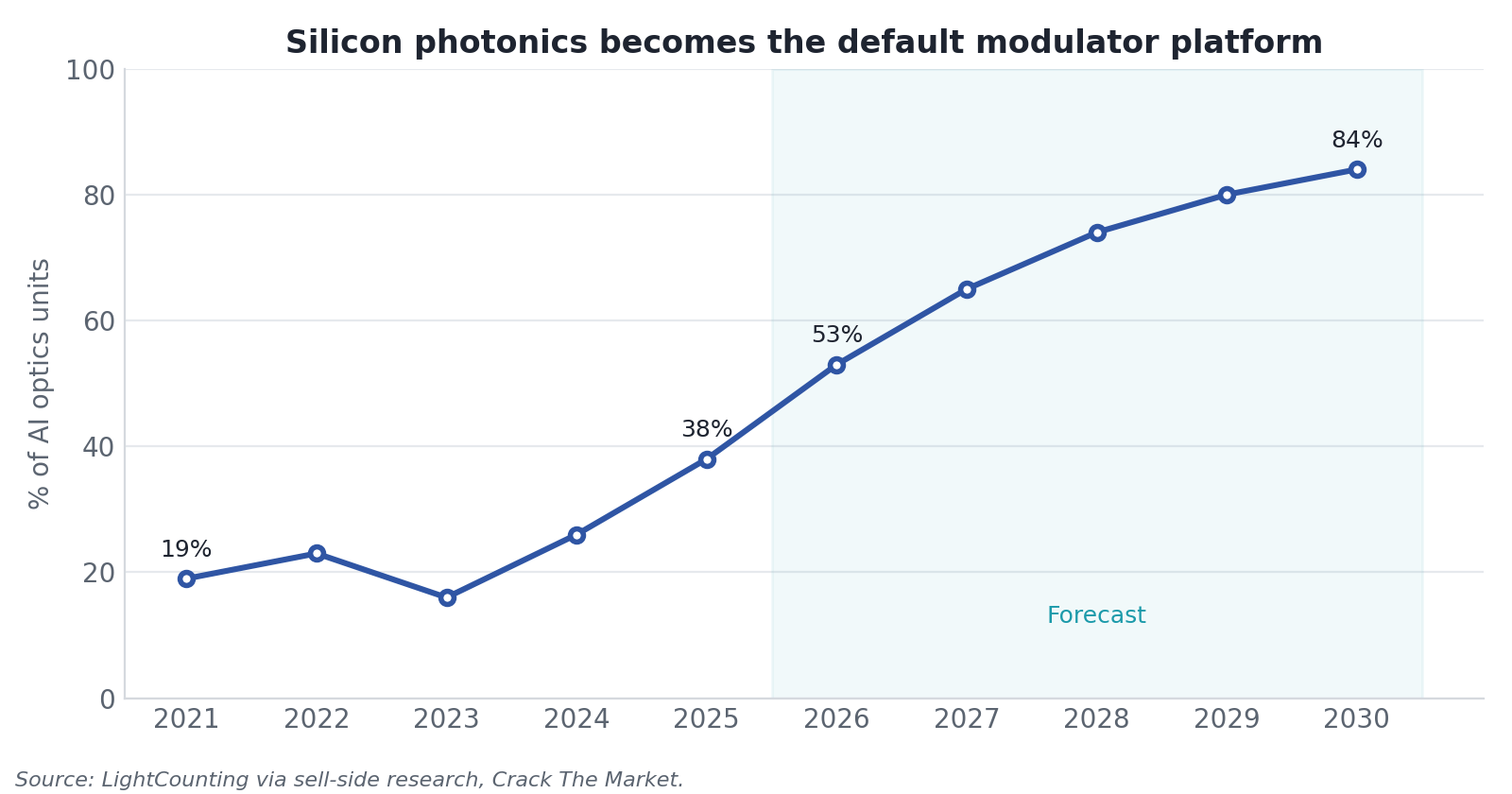

Silicon photonics became the majority platform. SiPh crossed half of AI optics units in 2026 and is headed to between roughly 73% and 84% by 2030, depending on which modulator wins at 400G per lane. Every one of those units needs a PIC, and a PIC needs a fab that can make one.
Every foundry announced a 300mm expansion at once. Tower in Japan, GlobalFoundries in New York and Singapore, STM at Crolles, UMC in Singapore, Samsung Electronics in South Korea. They all land in 2027 and 2028.
The layer is not unknown. Tower has tripled, Soitec has tripled, and PhotonCap wrote the first piece on the foundry pricing signal in June. What the layer is, is unmapped. Nobody has written down who can fabricate a PIC today, on which platform, at what wafer size, for which customers, with what capacity, and what sits underneath it. The consequence of a missing map is mispricing: an IDM that is a merchant PIC supplier at Tower’s scale is counted as a chipmaker, a foundry that calls itself the largest pure-play has been overtaken, and a foundry that is functionally captive is modelled as merchant. That is what this piece sets out to fix.
2. The thesis
The optical transition is becoming a consensus. The scarce asset is the capacity to fabricate the PIC, and that capacity sits in five fabs run by four merchant foundries and one quasi-captive one, all of which are expanding at once into 2028.
Five claims we intend to defend, each with a number behind it:
Merchant SiPh is a three-horse race, not a two-horse one. Tower runs at a SiPh run-rate above $680m (Q2 2026) heading to $1bn in Q4. GlobalFoundries guides to more than double its 2025 base of over $200m. STMicroelectronics, absent from every foundry map we have read, is modelled by the sell-side at roughly $800m of SiPh revenue in 2026 and $2bn in 2027. On the headline number STM out-earns both. On a wafer-comparable basis it sits at Tower’s scale and level with GlobalFoundries’ 2028 target. Either way it belongs on the map and is not on it.
The binding constraint is wafer starts today and packaging tomorrow. Tower’s Fab 7 runs above its 85% utilisation model. GlobalFoundries says it is “chasing supply”. STM says capacity is the only constraint. Once 300mm capacity lands in 2027 and 2028 the constraint moves to BiCMOS EICs, InP lasers, and optical wafer test and fibre attach.
CPO does not route through the merchant foundries. TSMC COUPE fabricates for Nvidia, Broadcom, Ayar Labs and Marvell (Celestial), and it only monetises inside TSMC’s own 3DFabric flow: SoIC bonding and optical test for today’s switch engines, CoWoS once optics move beside the GPU for scale-up from 2028. GlobalFoundries, Tower and UMC are betting on pluggables and NPO carrying the volume through 2028. GlobalFoundries itself says CPO is a relatively small contribution by 2028.

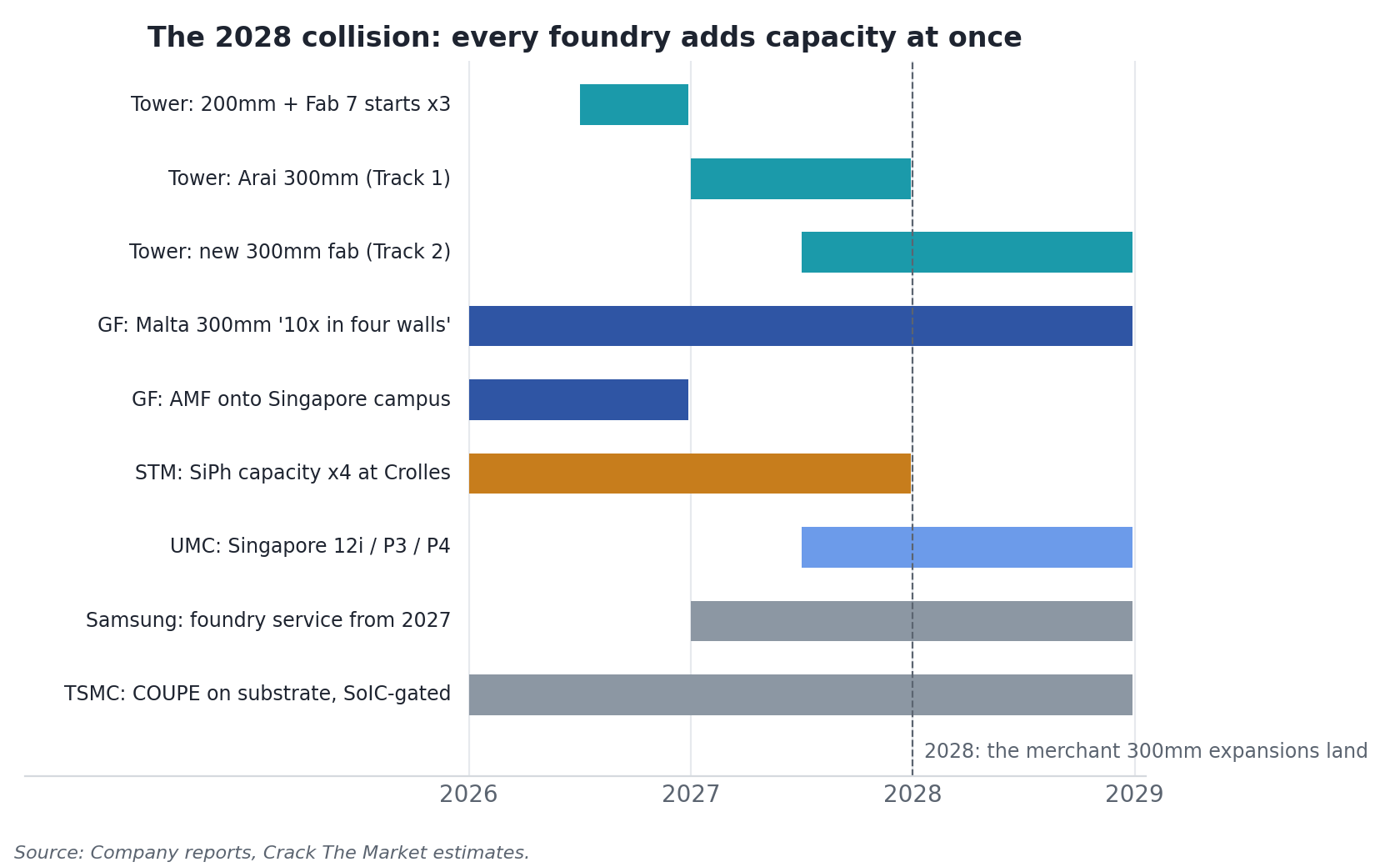

2028 will see four merchant 300mm expansions collide. Tower Arai (ready Q4 2027) and its second Japan fab (Q4 2028), GlobalFoundries Malta, STM quadrupling SiPh capacity by 2027, UMC’s Singapore shells, with Samsung’s foundry service arriving from 2027 on top. Demand has to absorb all of them or wafer pricing, which Tower’s CFO names as the single largest sensitivity in its model, gives back the margin it has just taken.
Everything above routes through one substrate supplier. Soitec holds roughly 95% of 300mm Photonics-SOI and sells to GlobalFoundries, TSMC, Tower, STM and imec. Every 300mm expansion in this piece is a Soitec order, and Soitec has just guided Photonics-SOI to 2.5 to 3 times last year’s level. The layer beneath is a tighter monopoly than the layer this piece maps.
What we are not claiming: that the foundry layer captures the most value in the stack (the laser layer’s pricing power is at least as strong), or that today’s contracted revenue survives a 2022-style capex reset intact.

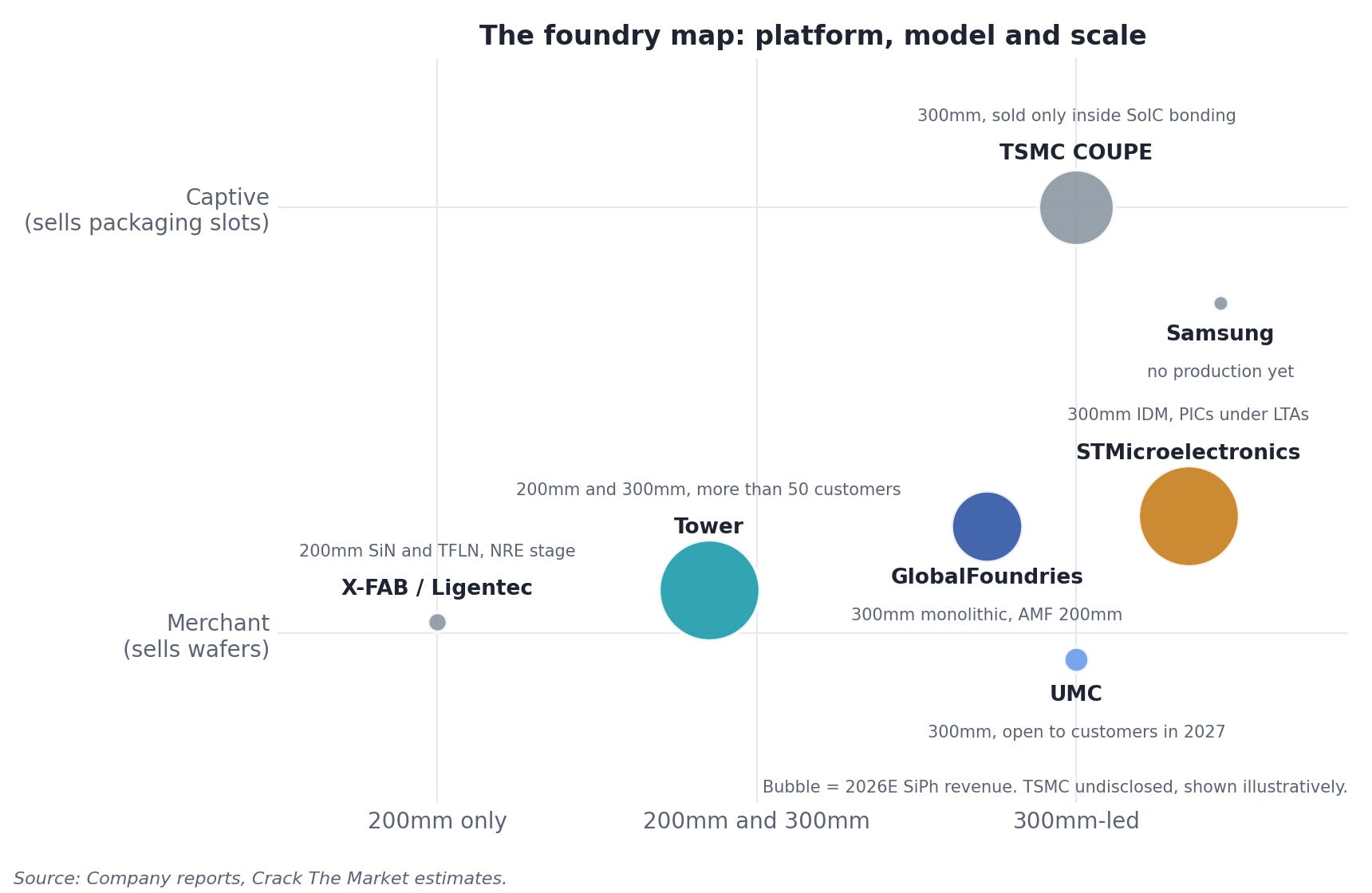

3. The map: who can fabricate a PIC today
Six companies fabricate datacom PICs at production scale. Only three disclose SiPh revenue, and none disclose SiPh wafers per month. The table is what filings, transcripts and disclosed customer relationships support as of September 2026. Blanks are gaps, not zeros.

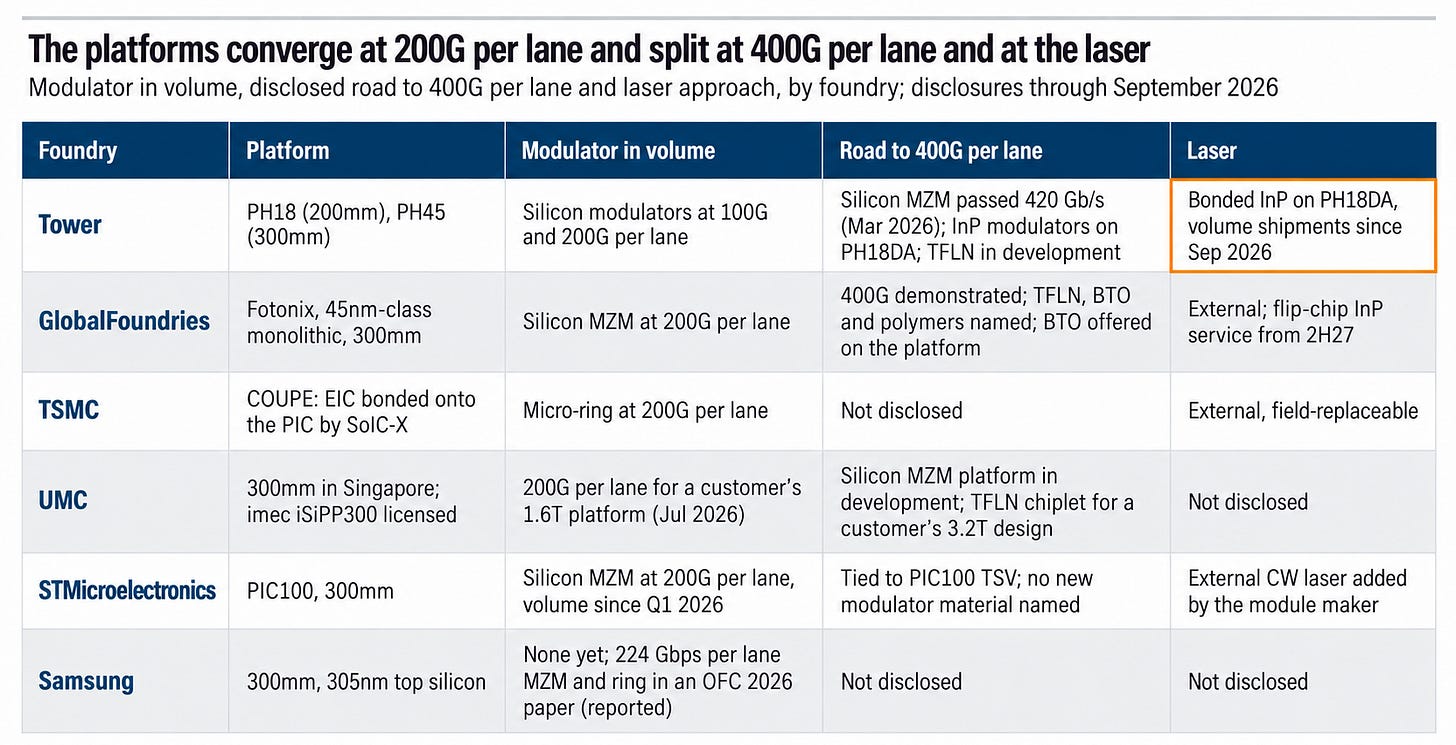

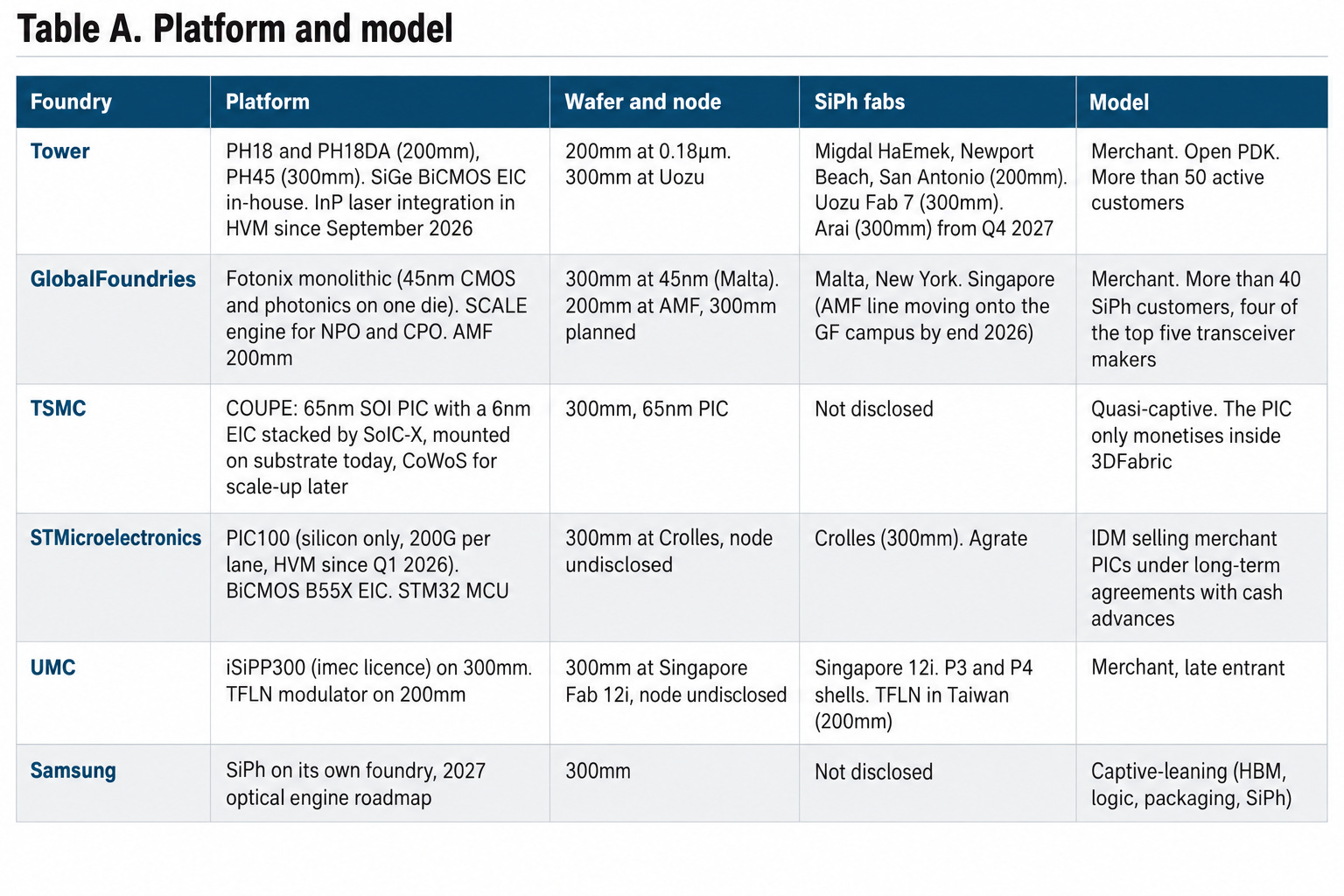

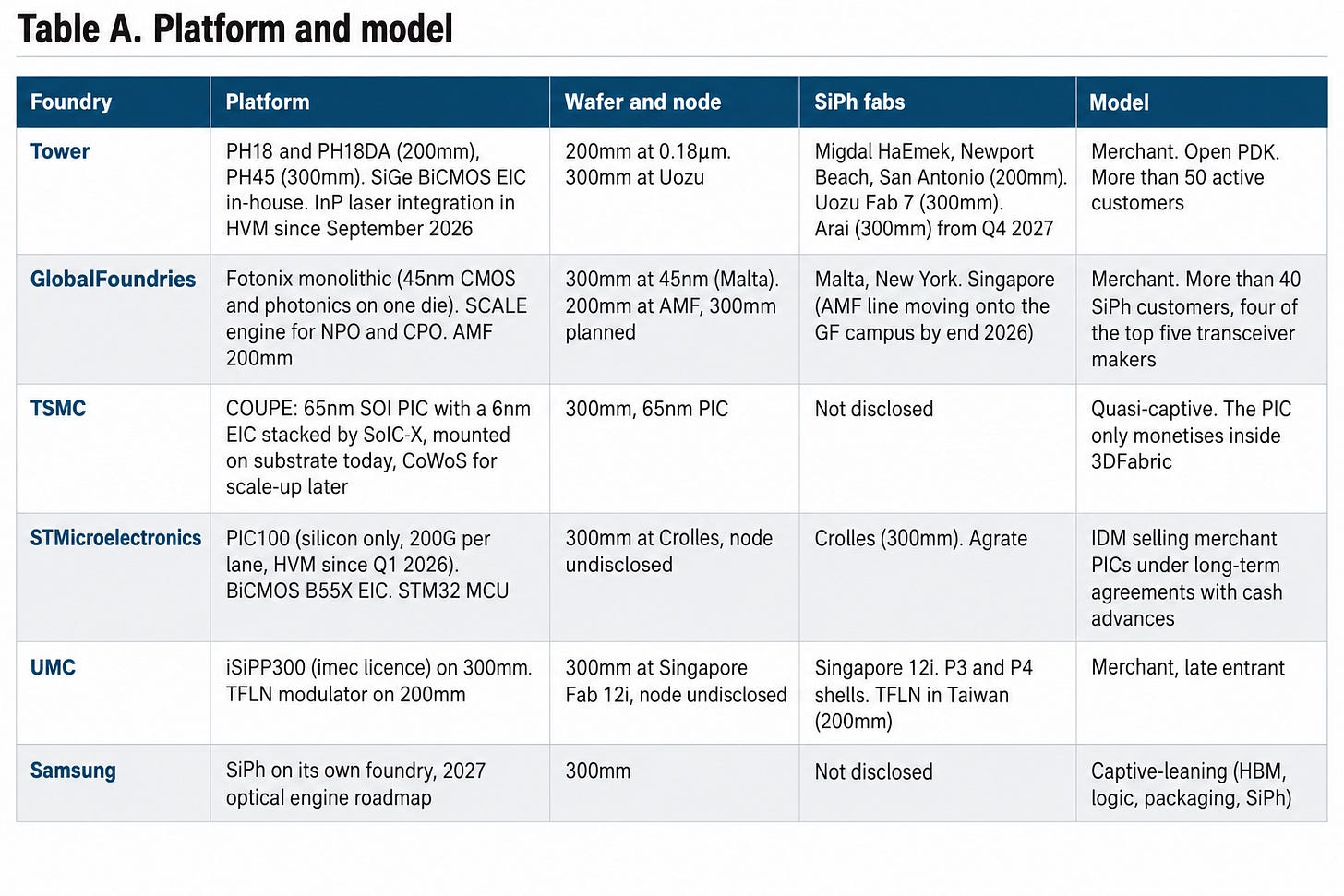

Table A. Platform and model

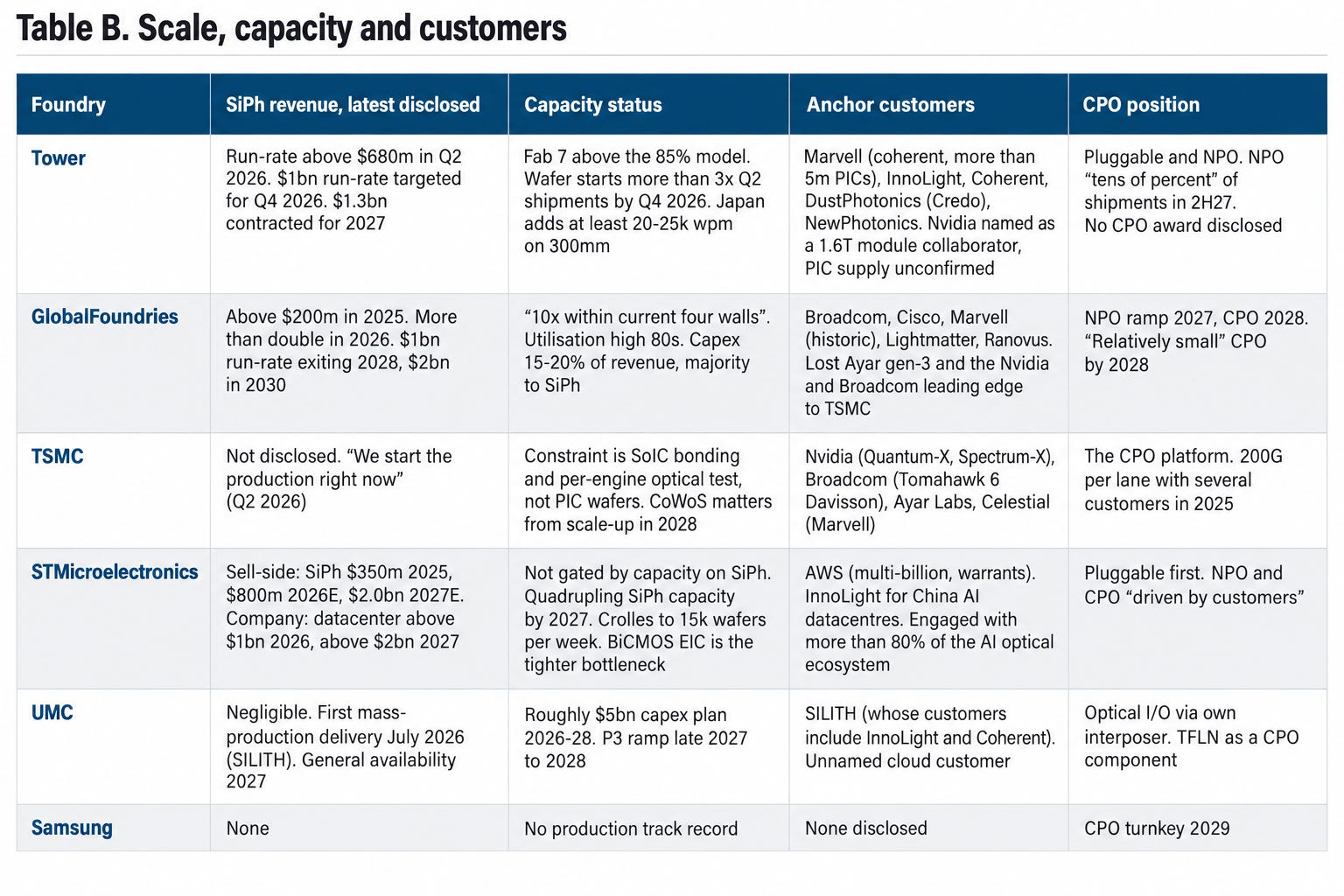

Table B. Scale, capacity and customers
Below this tier sit X-FAB (200mm XPH90 with Ligentec SiN and TFLN, NRE stage, product revenue 2027-28), Silterra (Malaysia, 200mm), SMART Photonics (InP, Netherlands) and Intel (in-house, little merchant traction). Section 9 covers them.
Two things jump out:
First, GlobalFoundries’ “largest pure-play SiPh foundry” claim from the AMF acquisition no longer holds on revenue: Tower’s Q2 2026 run-rate is more than 1.5 times GlobalFoundries’ full-year 2026 guide.
Second, STM does not appear in any sell-side foundry map, and on its headline numbers it out-earns both merchant leaders in 2027.
4. Tower: the merchant leader, from 200mm PH18 to 300mm Japan
Tower is a merchant foundry, building silicon photonics (SiPh) chips that customers design. Its 200mm PH18 and 300mm PH45 platforms are both in high-volume production for 400G to 1.6T modules. PH18DA bonds indium phosphide (InP) onto the silicon for on-chip lasers and modulators, and NewPhotonics began volume shipments of these photonic ICs (PICs) on 17 September. Tower also makes SiGe drivers and TIAs, the fast analog chips on either side of the optics, in volume at 100G and 200G per lane.
At 100G and 200G per lane the driver and PIC are separate chips, so one foundry for both is mostly a supply convenience. At 400G per lane the driver has to sit on the modulator to cut parasitics, and Tower already offers wafer bonding to stack SiPh and SiGe wafers. Owning both processes and the bond then becomes, in PhotonCap’s view, a performance moat, though no stack customer is named yet.
Growth is moving to 300mm in Japan. By Q4 2027 Arai joins Fab 7 with 300mm SiPh and bonding, and CEO Russell Ellwanger expects “all of the growth” in SiGe and SiPh to be on 300mm from sometime between 2027 and mid-2028. We covered the expansion in The More Silicon Wins, the More InP Sells: Why UMC and Tower Both Expanded 300mm on the Same Day. PH18 to PH45 is a real port: new lithography and etch tools mean waveguides, couplers and doping are re-characterized and the module requalified. We expect most customers to move at the 3.2T, 400G per lane boundary, when they tape out a new PIC anyway. Moving a PH45 design from Fab 7 to Arai is close to a copy.
A bonded laser is patterned by lithography aligned to the waveguides, so it needs no active alignment and can be tested at wafer probe. A bad one cannot be swapped out, though, so laser yield, which is unpublished, multiplies into PIC yield. External CW lasers can be screened and replaced, so switch co-packaged optics (CPO) keeps them outside. We expect the two to coexist by application. Integration wins where an engine needs many lasers at moderate power, in DR8 pluggables and serviceable near-packaged optics (NPO) engines like NewPhotonics’. It also spares module makers a CW laser that has been short all year (see Everyone Saw a Laser Shortage. The Money Went to the Foundries First.). With no 300mm laser flow disclosed, that edge stays tied to 200mm PH18DA for now.
A silicon Mach-Zehnder modulator (MZM) passed 420 Gb/s per lane with Coherent in March. PhotonCap’s read is that in production it carries 400G only in pluggables with a DSP, the digital chip that cleans up the signal, and that is where we expect Tower’s first 400G volume. Above 200 GBd in PAM4 a carrier-depletion MZM runs short of bandwidth, so the link leans on DSP equalization and a high-swing SiGe driver. Linear-drive engines, including linear NPO and CPO, have no DSP, so they turn to PH18DA’s InP modulators, with TFLN, which Tower has in development, later in the decade.
DustPhotonics is covered in A $750M Fabless Chip Company, and the Foundry That Makes the Chips. Nvidia is a named 1.6T module collaborator, but no Tower release we checked says Tower makes its PICs. Nvidia’s switch engines are TSMC COUPE-based CPO for its own switches, while NPO engines like NewPhotonics’ serve other switches, ASICs and operators who want swappable engines, so today the two complement each other. At 400G per lane we expect them to compete for hyperscalers’ scale-out ports, CPO on power and NPO on serviceability (section 6).
SiPh reached a $680m annual run rate in Q2 2026, aiming for $1bn in Q4, and customer advances and deferred revenue rose to about $320m by June from under $30m at end-2025. Company gross margin, which Tower does not split out for SiPh, reached 30% from about 22% a year earlier. Contracts cover about $1.3bn of 2027 SiPh revenue, and Ellwanger said the capacity beyond them is not all booked, “but it’s spoken for”. Q3 results in November, against a $520m guide, are the next check.
5. GlobalFoundries: 300mm monolithic scale, and what it ceded to TSMC
GlobalFoundries builds silicon photonics in Malta on Fotonix, a 300mm process that puts 45nm-class SOI CMOS and photonic devices on one wafer, so the driver chip (EIC) and photonic chip (PIC) can share one flow, though GF also supports a bonded EIC. CEO Tim Breen says 200G per lane is in volume production and 400G has been demonstrated.

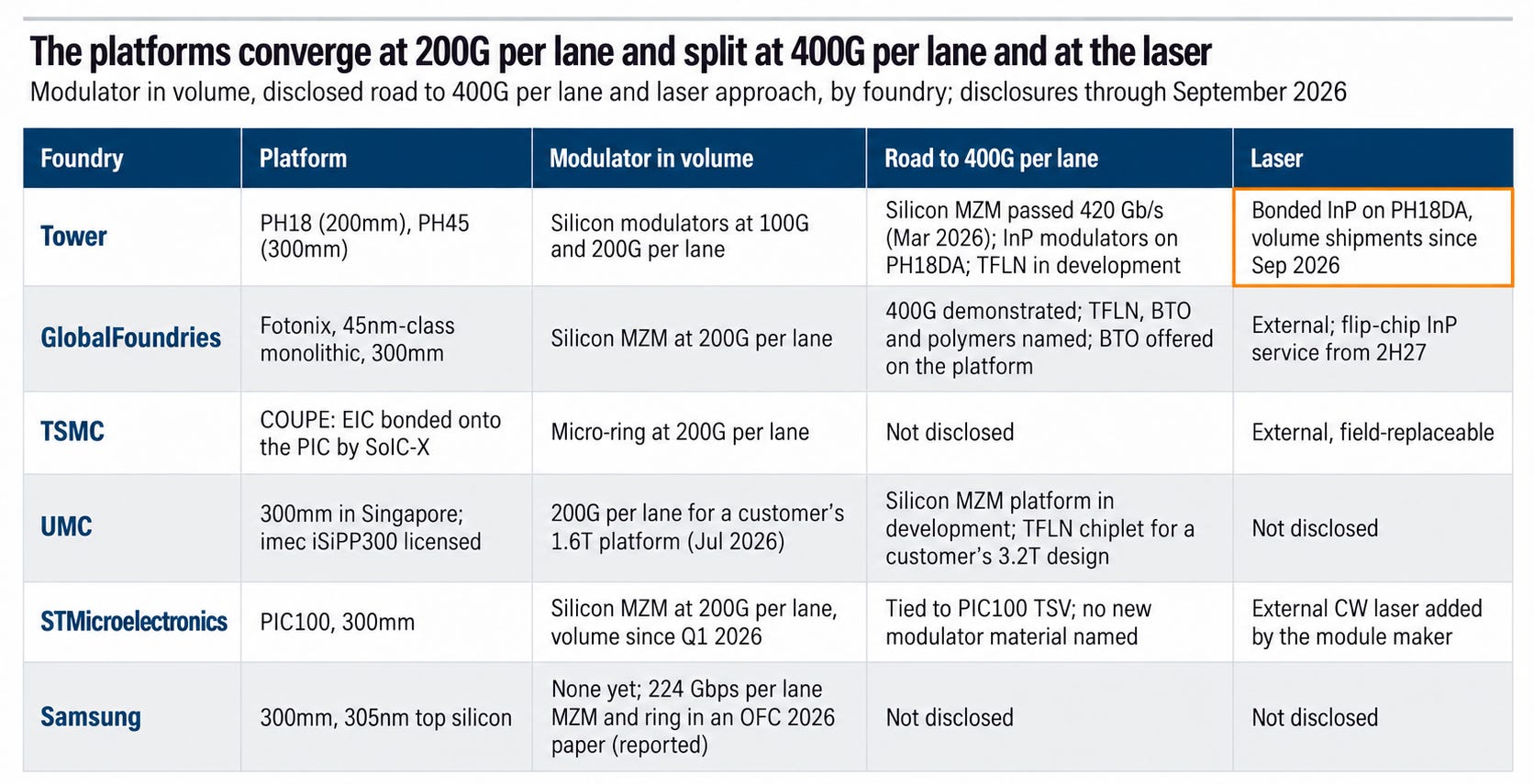

PhotonCap thinks the modulator type and the digital logic decide whether 45nm monolithic is good enough for a CPO engine. A silicon Mach-Zehnder modulator (MZM) needs a large swing: GF’s 200G MZM at OFC 2026 takes about 1.8 V·cm (voltage times length to fully switch it), several volts for a few-millimeter arm. That suits a 45nm SOI driver (the OFC paper itself used an off-chip one, as PhotonCap noted in [OFC 2026] Part 1 of 5: 300mm SiPh Foundry: Who Is Actually Ready?), and on the receive side monolithic removes the photodiode-to-TIA bond, where GF has shown a 100 GHz TIA. Micro-rings need less swing but a thermal lock loop per ring, logic that is cheap at an advanced node and costly at 45nm. TSMC’s COUPE hybrid-bonds an advanced-node EIC onto the PIC with little added capacitance (Section 6), erasing most of monolithic’s parasitic advantage. So Fotonix fits MZM pluggables and receivers, and COUPE fits ring-based CPO. The first switch engines went that way: Nvidia’s ring-based engines are built on COUPE (Section 6), and Broadcom’s Tomahawk 6 Davisson puts COUPE-based engines on the package substrate. Even GF’s own ring-based engine, SCALE, puts its EIC on “single-digit advanced nodes”.
SCALE, PhotonCap thinks, aims at a different market. Its 50G and 100G multi-wavelength rings fit scale-up, and GF calls it the first platform ready for the OCI MSA, the open scale-up optics spec. At those lane rates its microbump-class pads, below 45um pitch, are enough. Buyers of custom scale-up engines want a second source, and GF adds a detachable fiber plug and wafer-level optical test. So we see SCALE chasing those engines rather than TSMC’s switch engines.
With no disclosed in-house InP laser growth, GF relies on SMART Photonics laser dies flip-chipped into etched silicon pockets, a service generally available in 2H27. We read this as a process choice with a time cost. Flip-chip lets GF attach pretested lasers and the customer choose the InP vendor, at the cost of sub-micron alignment on every die. In CPO that matters less, since leading engines use external lasers, field-replaceable on Davisson. In pluggables Tower and NewPhotonics already ship laser-integrated PICs in volume (Section 4), about a year ahead of the SMART service.
For 400G per lane GF’s March blog names Pockels (field-driven) materials: thin-film lithium niobate (TFLN), barium titanate (BTO) and electro-optic polymers. We think TFLN reaches a 400G product first, even though BTO is already offered for today’s pluggables. Lithium niobate has the longest telecom reliability record, and AMF brought TFLN and polymer 400G modulator work into GF, per Gazettabyte (trade press), so we expect that product from AMF’s Singapore line.
Beyond switch CPO on the substrate, CoWoS-class integration beside a GPU or XPU arrives with scale-up optics, due on Nvidia’s NVLink in 2028 (Section 6). Breen put NPO in 2027 and CPO in 2028, which we read as matching that wave more than a GF-specific delay.
GF guides 2026 SiPh revenue to “more than double”, mostly from pluggables today, and a July letter of intent points to a $300m Commerce award for SiPh wafers, materials and packaging. Ozeco reads GF as a pluggable foundry with a government-funded materials roadmap, a business that lasts as long as pluggables do.
6. TSMC COUPE: quasi-captive through SoIC bonding
Public disclosures name one maker for the switch CPO engines shipping in 2026: TSMC. Its 2025 annual report says COUPE reached 200 Gbps “with several customers in 2025” and targets CPO volume production in 2026. COUPE uses SoIC-X, TSMC’s solder-free 3D stacking, to bond the electrical die (EIC) face-down onto the photonic die (PIC). Its modulator is a 200G micro-ring, a tiny resonant loop tuned to one wavelength. Nvidia’s Quantum-X Photonics and Broadcom’s Tomahawk 6 Davisson both use COUPE engines, with external lasers.
CoWoS places chips side by side on a silicon interposer, as GPUs sit next to HBM. TSMC’s 2024 plan put COUPE into CoWoS in 2026; by April 2026 the milestone read COUPE on substrate, with CoWoS-based CPO for ultra-high-end switches still in development. Today’s switches don’t need the interposer, since Broadcom uses substrate-level packaging and Nvidia solders its Spectrum-X engines onto the module substrate. CoWoS pays off when the engine sits beside a GPU or XPU for scale-up optics, the links inside one accelerator system; Nvidia plans CPO on NVLink ports in 2028. PhotonCap separated those two races in TSMC Is Ahead in CPO. Samsung Is Putting a Third Chip Next to HBM. The CoWoS queue belongs to a later generation, XPU scale-up and TSMC’s ultra-high-end switch package; today’s switch engines wait on SoIC bonding.

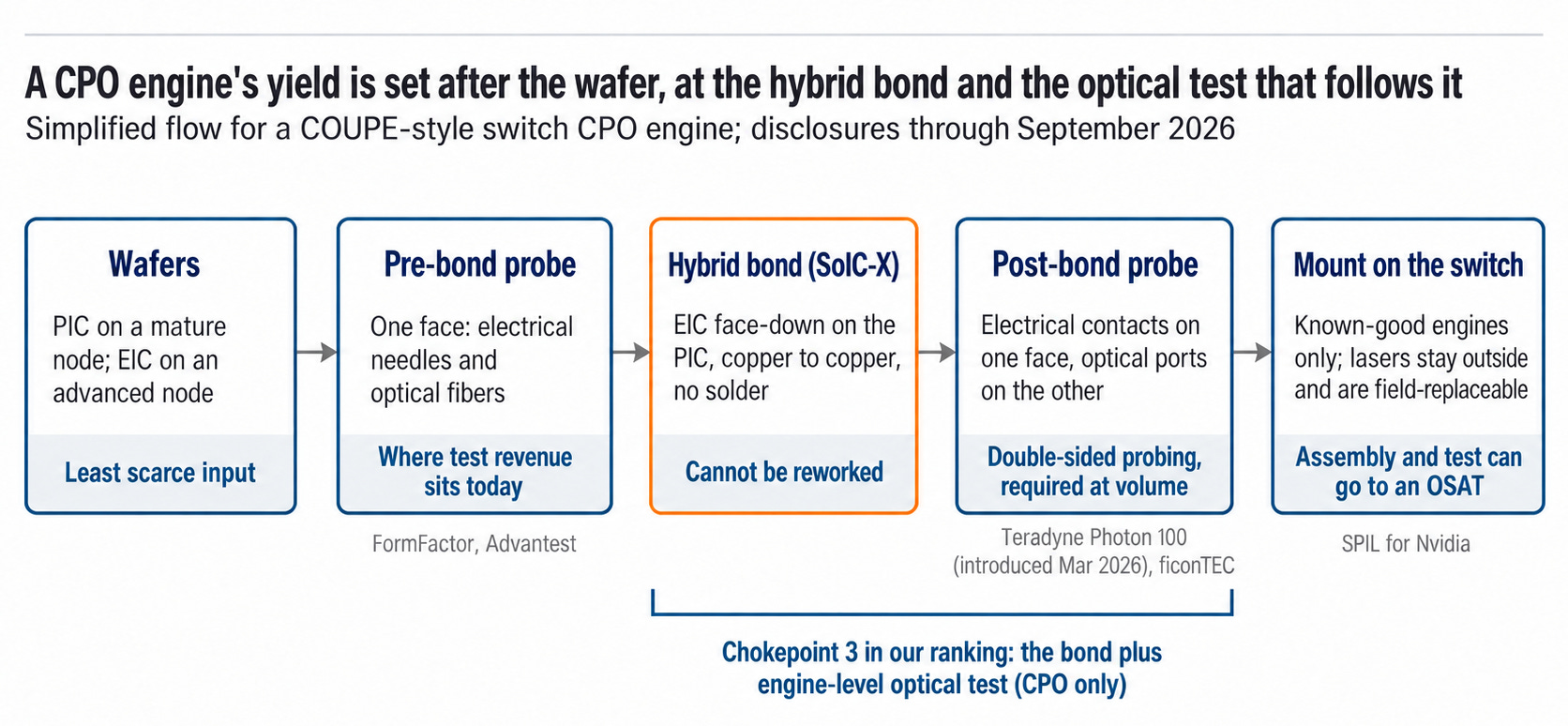

We see the PIC wafer as the least scarce input, since photonics runs on mature nodes with few mask layers. Downstream, a hybrid bond at a few microns of pitch cannot be reworked, so both dies are tested before bonding and each engine is probed optically, ring by ring. Engine yield multiplies EIC, PIC, bond and coupling yields, and only the first two are ordinary wafer-fab problems. TSMC’s K.C. Hsu likewise put the bigger challenge in lasers, fibers, connectors and testing. The bond stays in TSMC’s fab; assembly and test can go outside, as SPIL does for Nvidia. That split is what we mean by quasi-captive.
Pre-bond probing, done on one face of the wafer with electrical needles and optical fibers, is where we think most test revenue sits today. FormFactor expects 2026 CPO revenue to “significantly exceed the $20 million level”, per an Investing.com transcript of its Q2 call. Advantest is developing high-volume SiPh test with OpenLight. In a COUPE-style stack the electrical contacts end up on one face and the surface-coupled optical ports on the other, so confirming an engine works before it reaches a costly switch package means probing both faces. Teradyne introduced Photon 100 at OFC in March 2026, a year after a double-sided cell with ficonTEC for hybrid-bonded wafers, and PhotonCap’s read is that double-sided probing becomes a required step once engines ship in volume. SoIC bonding and engine-level optical test share third place in our chokepoint ranking for CPO because a bonded engine cannot be reworked and a bad one must be caught before it reaches the switch package.
TSMC says COUPE supports both grating couplers (light exits the chip surface) and edge couplers (light exits the die’s side), and can now test edge couplers at wafer level. In PhotonCap’s experience, edge couplers win on loss and bandwidth but were hard to test, since the facet exists only after dicing. With that fixed we read the two as splitting by application, edge coupling for TSMC’s next generation and gratings for Nvidia’s surface-normal engines.
Nvidia’s Quantum-X engines sit in sealed, socketed subassemblies, and in Nvidia’s 2025 launch description the lasers are the field-replaceable part. NPO, near-packaged optics, puts a swappable engine beside the ASIC instead, and NewPhotonics began volume shipments of laser-integrated Tower PICs for it on 17 September, with 6.4T NPO chipsets slated for the first half of 2027. At today’s 200G per lane we see the two as complementary: Nvidia’s CPO is tied to its own switches, while NPO serves other switches, custom ASICs and operators who want swappable engines. At 400G per lane we expect them to compete for scale-out ports, the switch network that links racks, CPO on power and NPO on serviceability. On pluggables TSMC is the least proven answer: the 2024 plan to qualify COUPE for pluggables in 2025 has produced no volume product, and nothing public shows TSMC selling bare SiPh wafers to module makers.
The money sits inside SoIC and packaging revenue, with no separate SiPh line. TSMC’s $60-64bn capex guide puts 10-20% in a bucket for “advanced packaging, testing, mask making, and others”.
7. STMicroelectronics: the merchant PIC supplier the maps leave out
STM is not in any foundry map we have read, and on its headline numbers it out-earns both merchant leaders in 2027. On a wafer basis it is a merchant PIC supplier at Tower’s scale. Ozeco covered the company in STMicroelectronics: Photonics, Satellites and Silicon Carbide and the datacenter numbers have moved twice since.
The numbers. Datacenter revenue was raised on 2 June 2026 to roughly $1bn for 2026 and roughly $2bn for 2027, from “nicely above $500m” and “well above $1bn” only months earlier. The CFO at a September conference put roughly 80% of 2027 datacenter revenue in the MDRF segment, which is the connectivity flow (SiPh PIC, BiCMOS EIC, STM32 MCU), and 20% in power and thermal. Optical was roughly $0.3bn in 2025 at above 40% gross margin.
Sell-side models put SiPh alone at $150m in 2024, $350m in 2025, $800m in 2026, $2.0bn in 2027 and $2.5bn in 2028, then flattening towards $3.5bn by 2030.
Orders above $1bn for 2026 and above $2bn for 2027 were secured before the June raise. Q2 book-to-bill was “significantly above 2” in Comms Equipment & Computer Peripherals, more than half of Q2 bookings were for 2027, and the backlog covers 4.5 to 5 quarters.
Comms Equipment & Computer Peripherals grew 50% year on year in Q2 and is guided to roughly 60% in Q3 and 90% in Q4.
The platform. PIC100 is a silicon-only 300mm platform at Crolles, 200G per lane, in high-volume manufacturing since Q1 2026 for 800G and 1.6T. STM has been investing in SiPh at Crolles since 2014 and is the only large European IDM with a 300mm SiPh line at scale. The EIC is STM’s own BiCMOS B55X, also at Crolles, where STM already holds more than 30% EIC share. The control-plane MCU is the STM32, where STM claims an oversized share in 800G and 1.6T. Three chips in every pluggable from one fab is impressive, and it is why the AWS agreement (multi-year, multi-billion, announced 19 February 2026, with warrants on up to 24.8m shares at $28.38 vesting on purchase volumes) covered PICs, EICs, MCUs and power together. The node is undisclosed in every document. Whether PIC100 sits on Soitec Photonics-SOI is not stated by STM, but STM is on Soitec’s customer list.
Capacity. “We are not right now gated by capacity expansion” on SiPh. SiPh capex is fungible with MCU on 300mm, “an increase in slicing” rather than a new shell, which is the structural advantage of running photonics inside a large 300mm logic fab.
Crolles will reach 15,000 wafers per week and go above it. Crolles plus Agrate can reach 20,000 300mm wafers per week at full build-out before 2028.
STM plans to quadruple SiPh capacity by 2027. 2026 net capex is at the high end of $2.0-2.2bn, explicitly rebalanced towards optical interconnect.
The tighter bottleneck is BiCMOS, with 12-18 month equipment lead times. 300mm lets STM add SiPh capacity without customer re-qualification. Management flags a pocket of OSAT constraint.
Contracting. A “significant number” of customers are asking for long-term agreements “locking capacity, volumes, pricing and cash advance for many”, running one to three years. This is the same prepayment mechanism PhotonCap identified at Tower, appearing at an IDM that no one classifies as a foundry.
Concentration. STM says datacenter revenue is “pretty consistent with market share distribution between hyperscalers”. Sell-side work puts AWS at no more than roughly 30% of datacenter revenue in 2027 and has STM engaged with more than 80% of the AI optical ecosystem. STM also supplies Chinese AI datacentres through InnoLight and other module makers. The 30% figure is a 2027 target, not today’s mix.
What is missing. No laser sourcing comment anywhere, which implies STM ships un-lasered PICs and the module maker attaches the CW laser. No CPO revenue or timing: “we have all the ingredients, including packaging, this will be driven by our customers.” No node. And one sell-side model already flags a moderation in photonics growth beyond 2027 that AI power has to offset. STM’s SiPh number is an IDM number, PIC plus EIC plus MCU at IDM pricing, and it has to be put on a wafer-revenue basis before it can be compared with Tower and GlobalFoundries. That is what we do later in the piece, in Section 12.
8. UMC, Samsung, Intel and the entrants
At UMC, silicon photonics starts with iSiPP300, a 300mm process licensed from imec in December 2025 and built around ring modulators and filters (small circular waveguides that resonate at one channel’s wavelength), GeSi electro-absorption modulators and 3D packaging modules. The first volume product on the Singapore 300mm line is a customer design, and the release doesn’t tie it to the imec process. On 14 July UMC and SILITH announced the first mass-production delivery of 300mm PICs for SILITH’s 1.6T platform at 200G per lane, qualified by a leading cloud infrastructure customer, and the two are now building a 400G-per-lane platform on silicon Mach-Zehnder modulators (MZMs).
Alongside it, UMC has thin-film lithium niobate (TFLN), a crystal film whose refractive index shifts directly with voltage, which gives high bandwidth at low drive voltage. HyperLight’s TFLN chiplet platform is qualified in volume at Wavetek, a UMC subsidiary, on 150mm wafers, with 200mm capability added. On the Q2 call, per Investing.com’s transcript, CEO Jason Wang said UMC is working on 400G per lane for a customer’s 3.2T design on TFLN, which could be combined with UMC’s silicon PIC through its advanced packaging.
PhotonCap expects silicon MZMs and TFLN to coexist at 400G per lane for a while. Silicon MZMs should keep the volume DSP pluggables on cost and CMOS manufacturability, as the Tower and Coherent 420 Gb/s demo suggests (Section 4), while TFLN gets in first as a chiplet next to the silicon PIC where low drive voltage and high bandwidth matter most.
From 2027, when its filing says the platform opens for general customer use, UMC joins GF, Tower and ST as a 300mm SiPh line for any customer’s designs, so wafer size alone doesn’t differentiate it. What it has on top is the combination of a 300mm SiPh line, a separate TFLN manufacturing line (on 150mm and 200mm wafers, not 300mm) and in-house packaging inside one group, which no other merchant foundry here offers today. Ozeco’s read is that UMC becomes the first real alternative source of 300mm PIC wafers once its P4 cleanroom in Singapore ramps in late 2027 to early 2028, and the sign to watch is a second named SiPh customer beyond SILITH before then. UMC raised 2026 capex from $1.5bn to $2.0bn in July with no SiPh split. SiPh wafer capacity and revenue are undisclosed, and UMC guides its Q3 dollar ASP to “remain firm”.
Samsung’s 300mm platform, per SemiVision Research’s summary of its OFC 2026 paper (secondary), uses a 305nm top silicon layer, a 400nm SiN layer, PN-doped modulators and germanium photodiodes. PhotonCap doesn’t see 305nm as a unique porting barrier, but it does mean more redesign for thickness-sensitive devices such as rings and grating couplers. The Elec reported in September that in-house PIC wafer test was still under way, with foundry service from 2027.
Intel has the longest SiPh volume record here, from a platform that integrates lasers on the die at wafer scale: over 8 million PICs and over 32 million on-chip lasers, mostly in its own pluggables.
In China, CanSemi has a 300mm 90nm SiPh platform at trial production and has not named a datacom module customer.

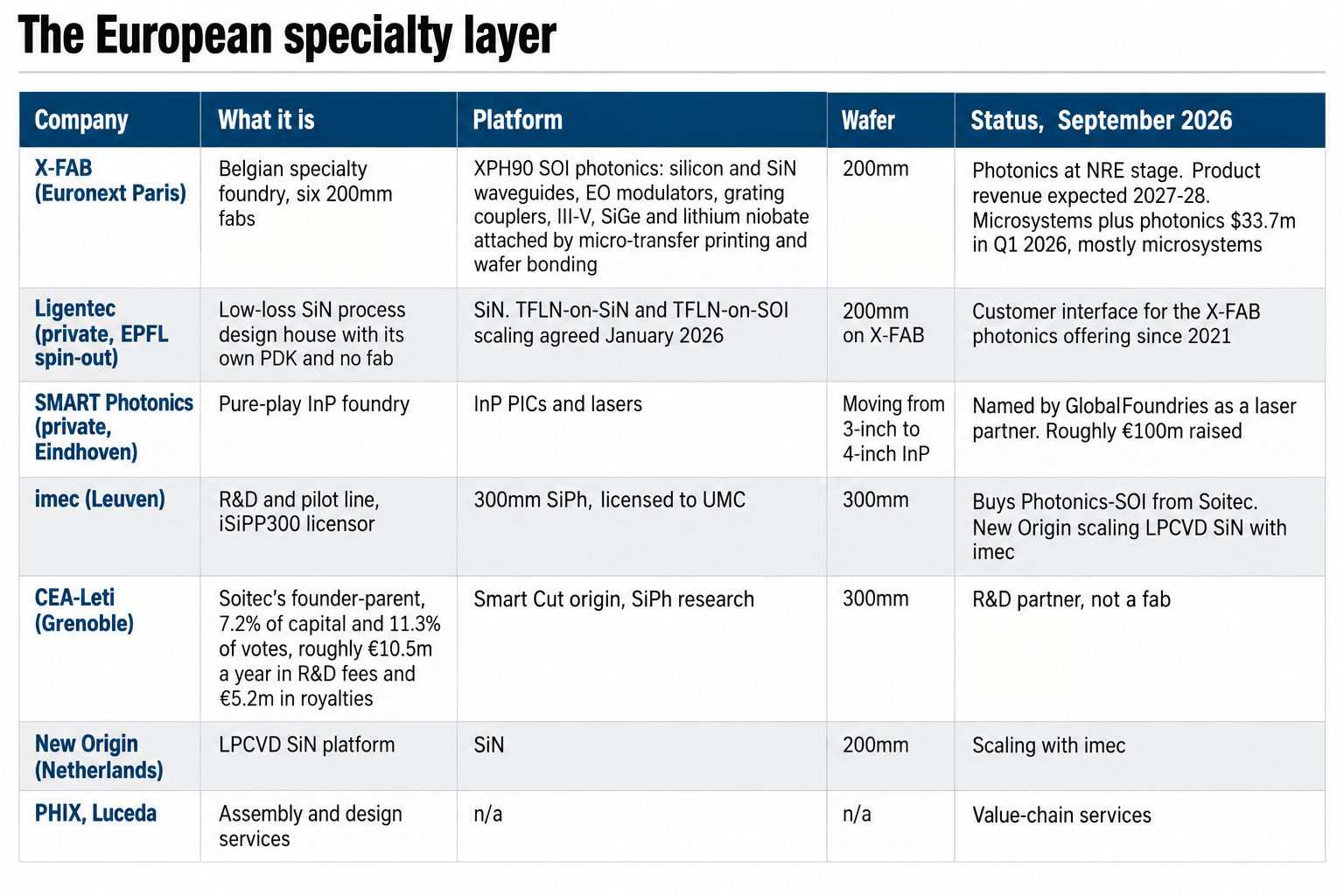

9. The European specialty layer
Europe has one volume SiPh fab (STM’s Crolles), one volume substrate supplier (Soitec), and a set of 200mm specialty platforms that serve a different market: low-loss silicon nitride, heterogeneous integration, InP, high-mix. Though Europe has no pluggable PIC foundry today. This is consistent with Ozeco’s framing in The European Photonics Supercycle and The US Photonics Supercycle: Europe owns the tools and substrates upstream, America owns the lasers, the silicon and the systems.
Three observations on Europe’s positioning:
X-FAB is the only listed European specialty name with a credible volume path, and its photonics is optionality for 2027-28 rather than pricing power today. The share price moved on the silicon carbide and SiPh narratives before the revenue.
SiN and TFLN are the next curve, not the current one. LightCounting has TFLN barely visible in 2026 and appearing from 2027 in DWDM. That is where Ligentec with X-FAB and UMC’s TFLN line compete, not where Tower and GlobalFoundries earn today.
The European layer’s real weight is upstream. Soitec substrates and Aixtron epitaxy tools, which the next section covers, and STM, which is the only European name in the volume tier.
10. The layer beneath: substrates, InP and epitaxy
A foundry’s capacity build is only realised on top of its materials supply, and the materials layer is more concentrated than the foundry layer it feeds.
Soitec: the wafer under every 300mm expansion
Soitec does not make chips. It makes the engineered substrates that other people build chips on, and in photonics that makes it the single point every foundry in this piece passes through.
Smart Cut is roughly the entire SOI market. Soitec holds roughly 80% of SOI overall and roughly 95% of 300mm Photonics-SOI, on which the industry is standardising.
Every major SiPh foundry, GlobalFoundries, TSMC, Tower, STM and imec, buys Photonics-SOI from Soitec. The company now talks about “around ten major Photonics-SOI customers”, up from the five it referred to earlier this year.

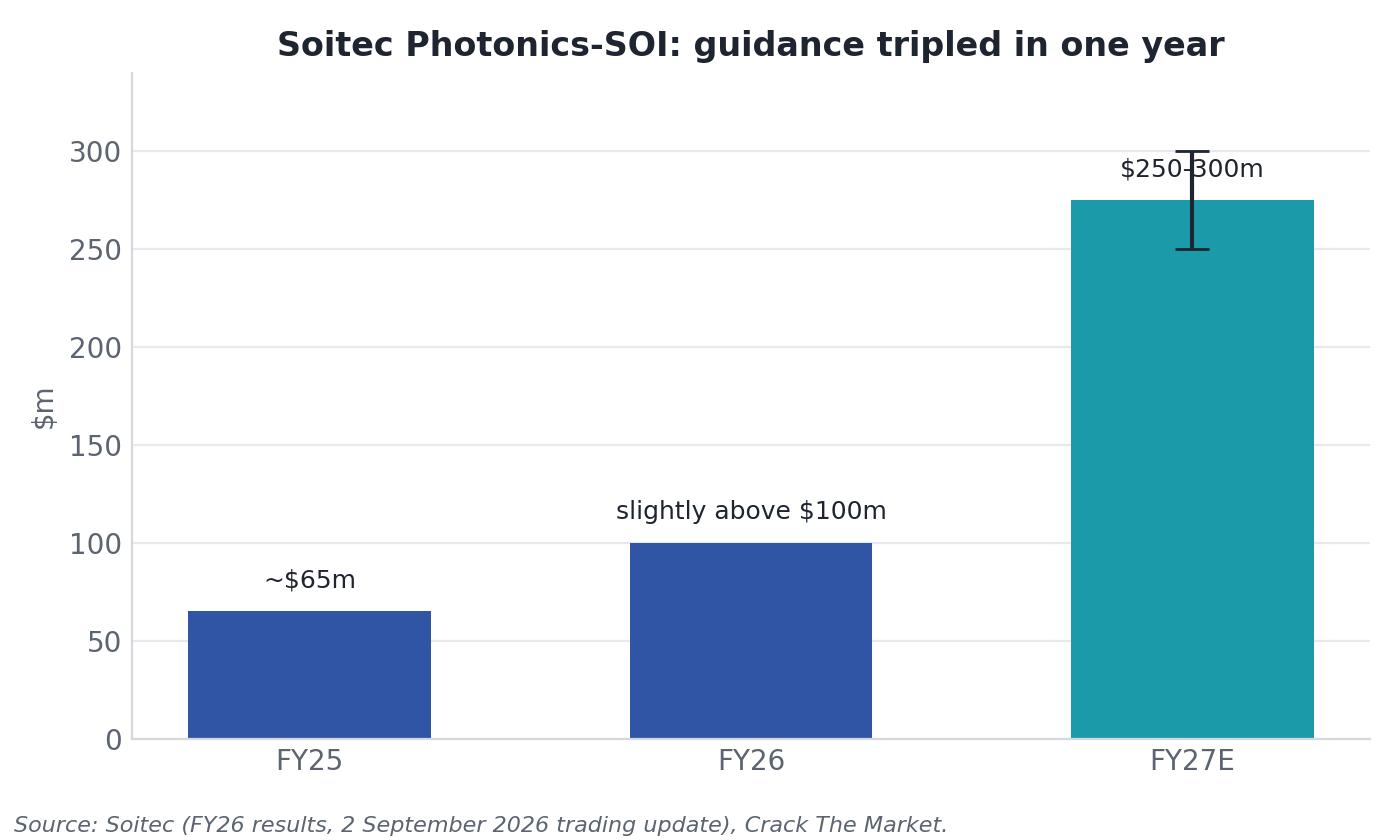

Photonics-SOI was slightly above $100m in FY26 (March 2026). On 2 September 2026 Soitec raised the FY27 Photonics-SOI outlook to 2.5 to 3 times the FY26 level, so $250-300m, with Q2 FY27 at roughly three times last year’s quarter (about $75m) and the first half at roughly 2.3 times. Group Q2 revenue growth was raised to around 50% from “more than 30%”. Soitec expects multi-year capacity reservation agreements to be in place with eight of its roughly ten major Photonics-SOI customers within weeks, on top of the prepaid reservations already in the commitment book (up to €1.1bn of future sales at 31 March 2026).
The 300mm Photonics-SOI line in Singapore qualified for high-volume manufacturing six months early. As of the FY26 results management said no expansion was needed and fab loading was around 50% against the 60-70% needed for leverage. The September update did not change that, which means the 2027-28 foundry ramps are being absorbed by existing Soitec capacity for now.
In Soitec: The Photonics Monopoly Ozeco built the TAM on $1,300 per 8-inch-equivalent wafer held flat and 8-inch-equivalent Photonics-SOI wafers rising from 65k in 2025 to 406k in 2030, a 44% CAGR, for roughly $528m of datacenter Photonics-SOI revenue by 2030. The September guidance says wafer volumes roughly triple in a single year. At that pace the 2030 endpoint of the framework arrives in 2028, which is the same year the four foundry expansions land. The two series are consistent, and both say the substrate order book leads the fab order book by about a year.
Second-source risk is the one thing to keep watching. Shin-Etsu (licensee since 1997, shareholder), Siltronic (licensee 2004) and GlobalWafers (licence terminated 2025, shipping 300mm SOI, stated intent to serve photonics) are the candidates. Ozeco’s model drifts Soitec’s share from 95% to 80% by 2030 with six to twelve month qualification cycles. Lithium-niobate-on-insulator for beyond-1.6T modulation is in development at Soitec, which is the bridge to the TFLN layer.
InP: the laser’s bottleneck, and now the foundry’s
200G per lane EML supply and most of the CW laser and photodetector chain run on InP substrates and epitaxy. In Coherent & Lumentum Ozeco argued that in this layer capacity is revenue, and the numbers since have followed the capacity ramps exactly.
Coherent grew InP output 80% year on year in the June quarter, doubles capacity by the end of the September quarter and again by end 2027, almost entirely on 6-inch, which gives more than four times the die per wafer at roughly half the cost per device. Four InP fabs: Fremont, Sherman (first 6-inch, ultra-high-power CPO lasers), Järfälla and Zurich.
Lumentum’s two Japanese 4-inch fabs are fully allocated, capacity is up roughly 40% in three quarters, Greensboro is native 6-inch with first revenue early 2028, and the company holds more than 50% EML share at 100G and 200G.
Nvidia put $2bn of equity into each in March 2026 with multi-year purchase commitments and capacity rights. Lumentum’s CEO said Nvidia could take all remaining capacity.
Substrates: Sumitomo Electric (targets more than double capacity 2023-28), AXT (not yet on 6-inch, China-domiciled manufacturing), JX, Freiberger. Epiwafers: IQE, now under a multi-year minimum-commitment agreement with Tower, and VPEC.
Industry consensus has light sources tight through 2027 and balanced in 2H28.
The point for the foundry map: Tower’s integrated-InP strategy, now in high-volume production with NewPhotonics, pulls the laser bottleneck inside the foundry gate, while GlobalFoundries, STM and UMC leave it with the module maker.
Aixtron: the tool under the epi
Aixtron holds roughly 90% of MOCVD for optoelectronic epitaxy and is the only commercial platform for InP CW and EML layers, with an 18-24 month switching cost. Epitaxy is 40-60% of laser wafer cost. After the Nvidia deals management guided 60-120 InP tools a year at €3-3.5m each, €180-420m against a roughly €100m 2025 base. The G10 tool on 6-inch raises output per run 1.5-2.5 times plus a 33% yield gain, which means fewer units for the same capacity, and that is the risk in the tool count.
Chokepoint ranking
Ranked by substitutability and lead time:
Soitec Photonics-SOI. No qualified 300mm second source, six to twelve month qualification, order book leading the fabs by a year.
InP epi and 6-inch substrates. Tight to 2027, balanced in 2H28, and now being locked by foundries as well as laser makers.
SoIC hybrid bonding and engine-level optical test (CPO only). Cannot be reworked, single supplier, and the step that gates switch engines today.
Merchant SiPh wafer starts. Tight today, four expansions landing 2027-28.
MOCVD tools. Constrained by unit count, not by share, and eased by the 6-inch productivity gain.

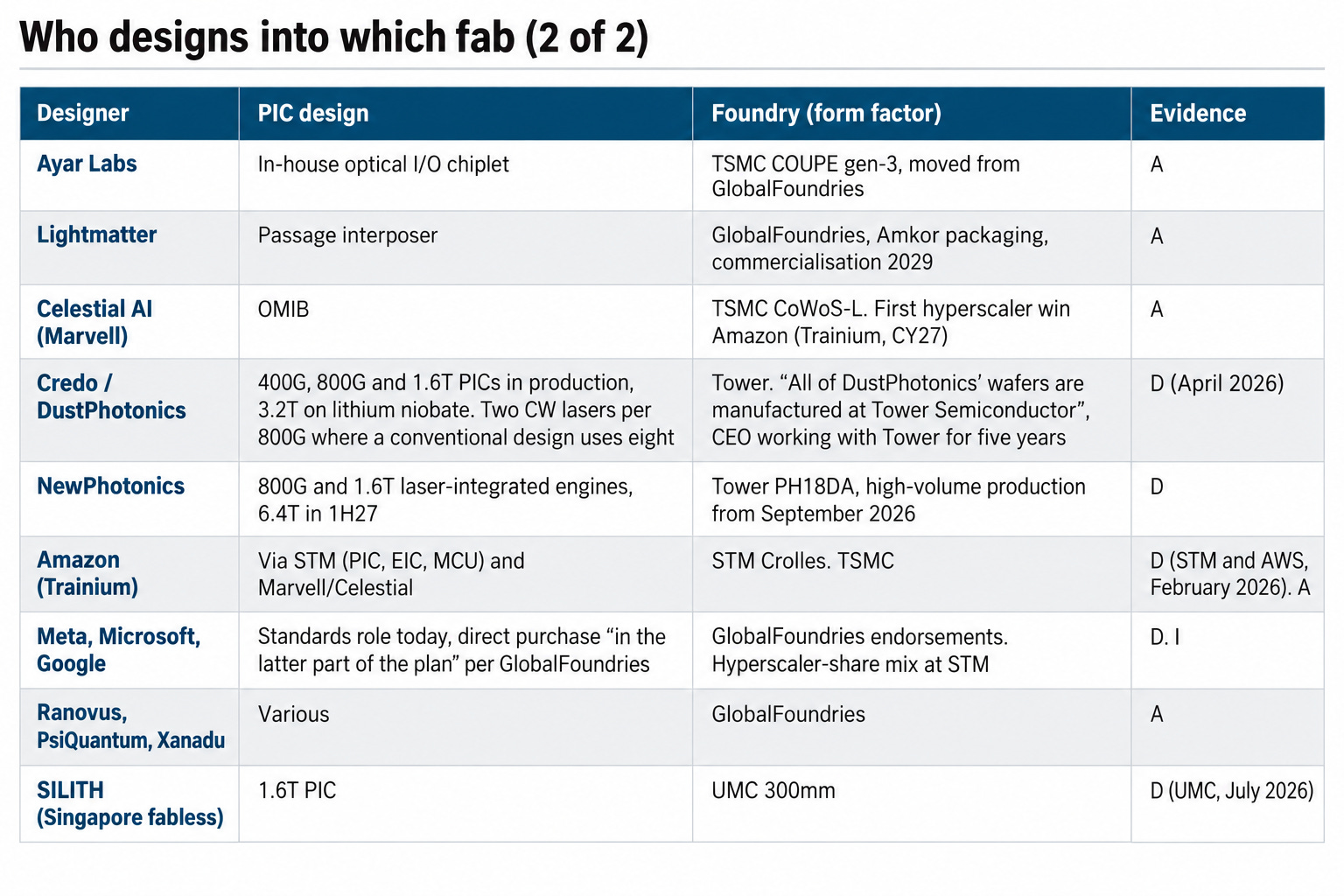

11. Who designs into which fab

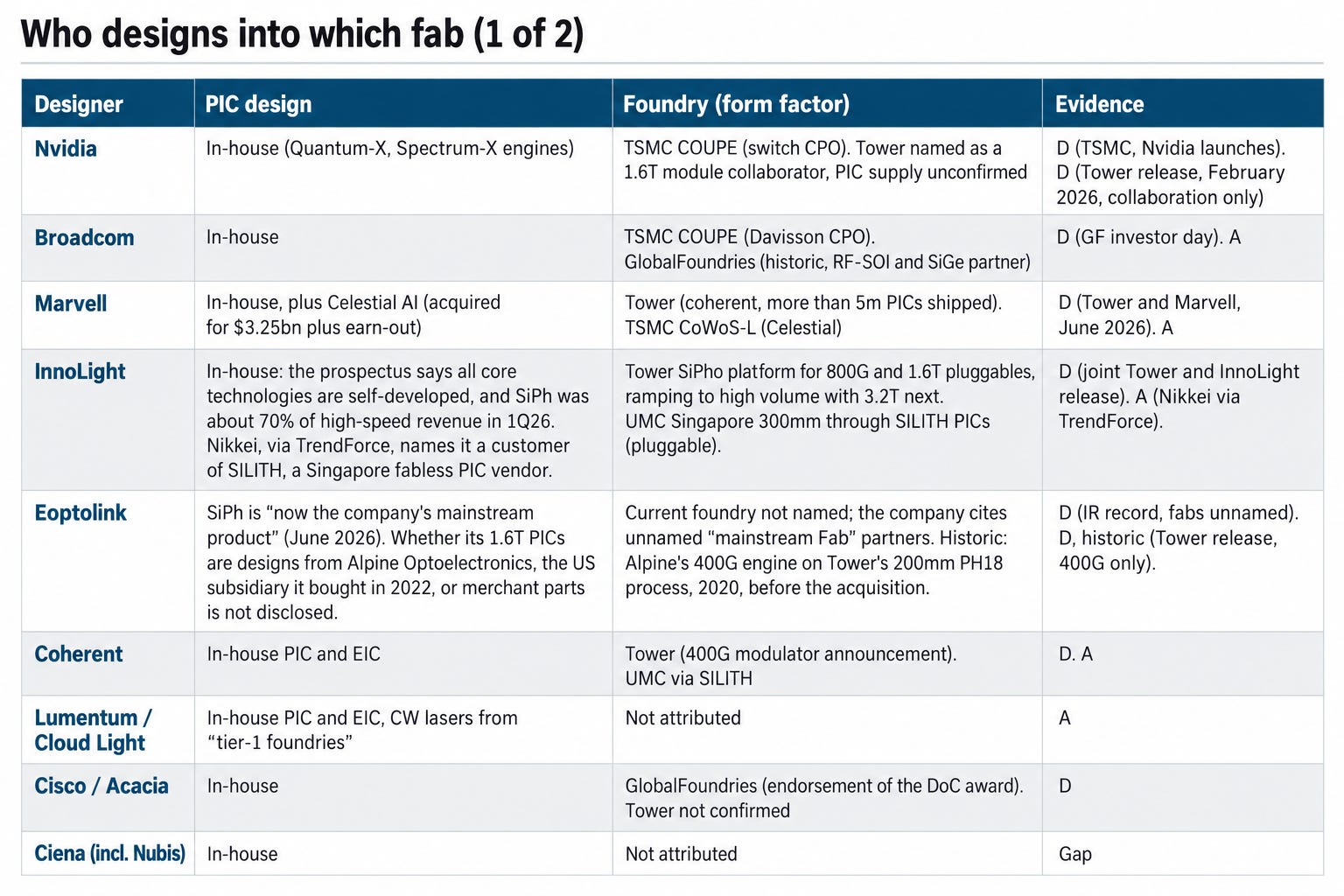

The foundry map only matters if we can say who is designing into each fab. This is the table that does not exist anywhere else, and it is assembled from disclosures where they exist and attributions where they do not. Each row carries its evidence grade: D disclosed by one of the parties, A attributed by industry research or trade press, I our inference.
Three observations:
Tower’s customer list is the broadest and the best confirmed, and it got two more confirmed names in the last five months (DustPhotonics through PhotonCap’s April piece, NewPhotonics through Tower’s own release). That is why its contracted revenue is the cleanest signal in the layer.
The CPO customers are all at TSMC, and the ones that started at GlobalFoundries (Ayar Labs, and the Nvidia and Broadcom leading edge) left. GlobalFoundries’ customer list is now a pluggable and quantum list.
Credo matters more than its size suggests. In Credo: When a De-Rating Is a Gift Ozeco set out the FY27 optical target above $600m across DSPs, PICs and ZeroFlap transceivers, with ZeroFlap at 100k units a month exiting the year and two merchant 1.6T PIC design wins for FY28. All of that PIC volume now lands on Tower’s 200mm lines, which is a second reason to read Tower’s “spoken for” capacity as real.

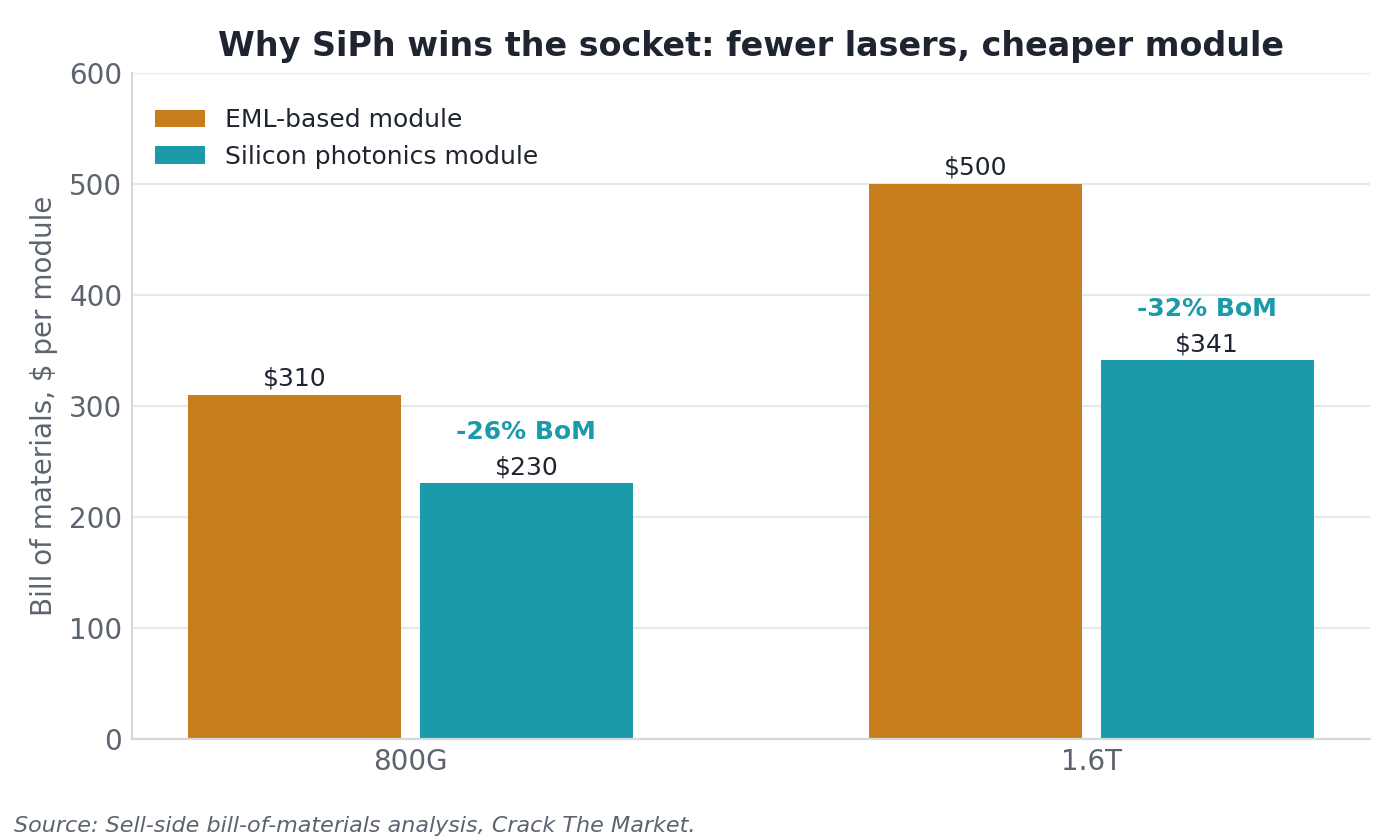

Only silicon photonics modules need a SiPh wafer; EML modules (laser and modulator on one indium phosphide chip) and VCSEL modules do not. LightCounting’s forecast has AI optical modules growing from about 36m units in 2025 to about 130m in 2030, with the SiPh share rising from 38% to 84%. That takes SiPh modules from about 14m to about 110m, twice the market’s growth.
The reason is mostly the laser. An EML-based 1.6T DR8 (eight parallel 200G fiber lanes each way) needs eight 200G EMLs, while a SiPh DR8 can run off as few as two high-power CW (always-on) lasers, each shared by four lanes. Some designs use four. In PhotonCap’s view, the 200G EML has been the tightest part of the optics supply chain through the 1.6T ramp, on yield and capacity. The saving holds only in parallel designs like DR8. A 2xFR4 module, four wavelengths on each of two fibers, still needs one laser per wavelength, and there EML holds on.
PhotonCap reads 84% as an upper bound that needs silicon to hold the next lane speed. The public series is lower: CIC, in InnoLight’s prospectus, ends at 73% of datacom optical revenue in 2030. Tower and Coherent have run 400G per lane through a silicon modulator, but Coherent also showed a 400G differential EML and InnoLight a 200G per lane TFLN modulator, a candidate for the next speed. If 400G per lane goes to EML, unit share likely stalls near 73% or below. TFLN bonded onto a silicon PIC still starts on a SiPh wafer, though.

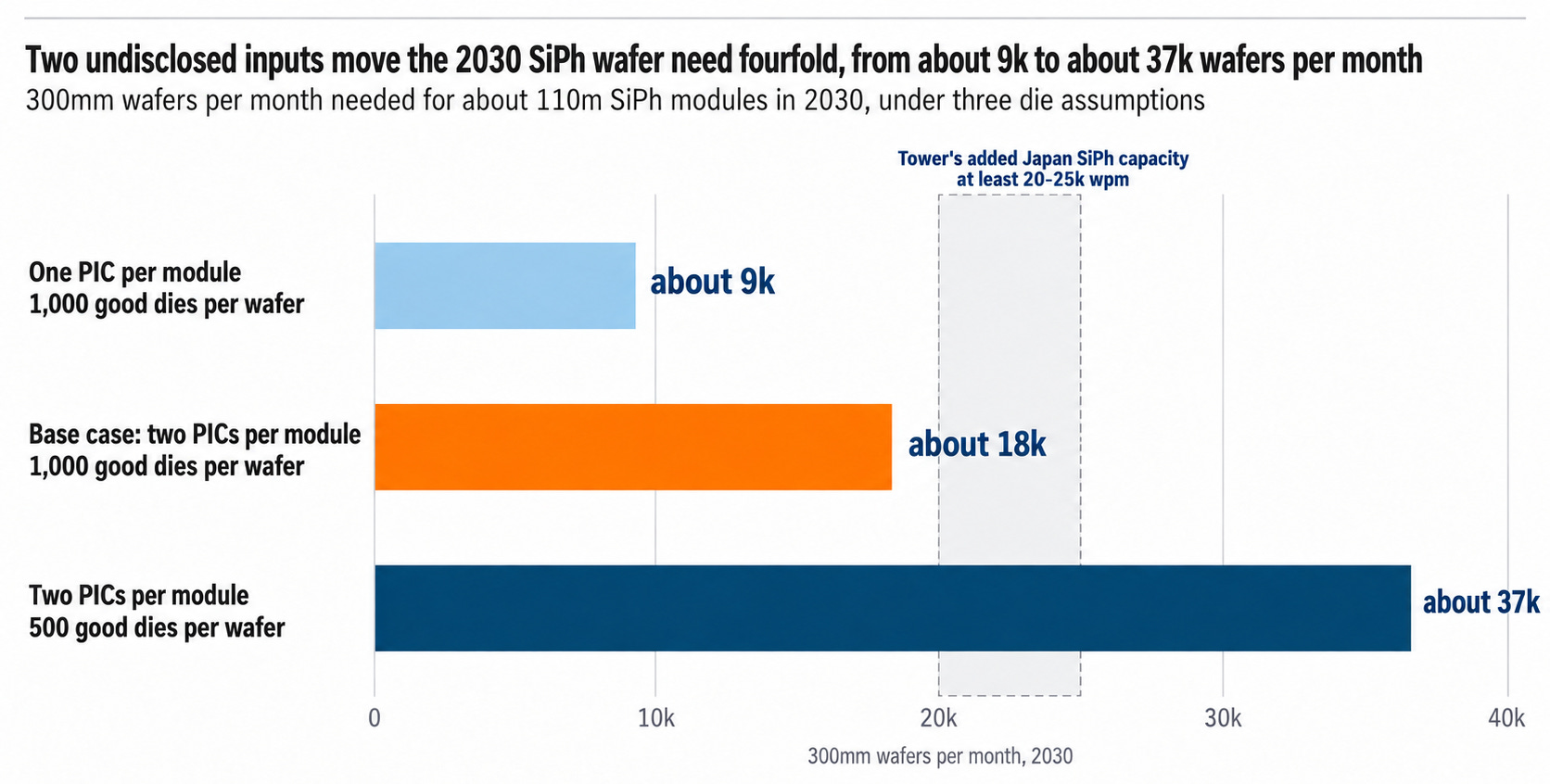

PICs per module and good die per wafer are not disclosed, so as an explicit assumption we use two PICs per 1.6T module (transmit and receive) and about 1,000 known-good dies per 300mm wafer, as section 12 does. Then 110m modules in 2030 need about 220k wafers a year, roughly 18k wafers per month (wpm). One die per module, as in some 1.6T designs, halves that; 500 good dies per wafer, plausible for a larger die, doubles it to about 37k wpm. These two inputs decide whether 2027-28 capacity looks tight or oversupplied; section 12 makes that comparison.
CIC puts InnoLight at about a fifth of the 2025 optical interconnect market, with an unnamed 14% player that matches Eoptolink by our reading. Both are Chinese, yet every PIC foundry named for them is outside China. If a US rule ever targets suppliers by nationality, module share would shift to non-Chinese makers, and the PIC wafer would move only if those makers use a different foundry.

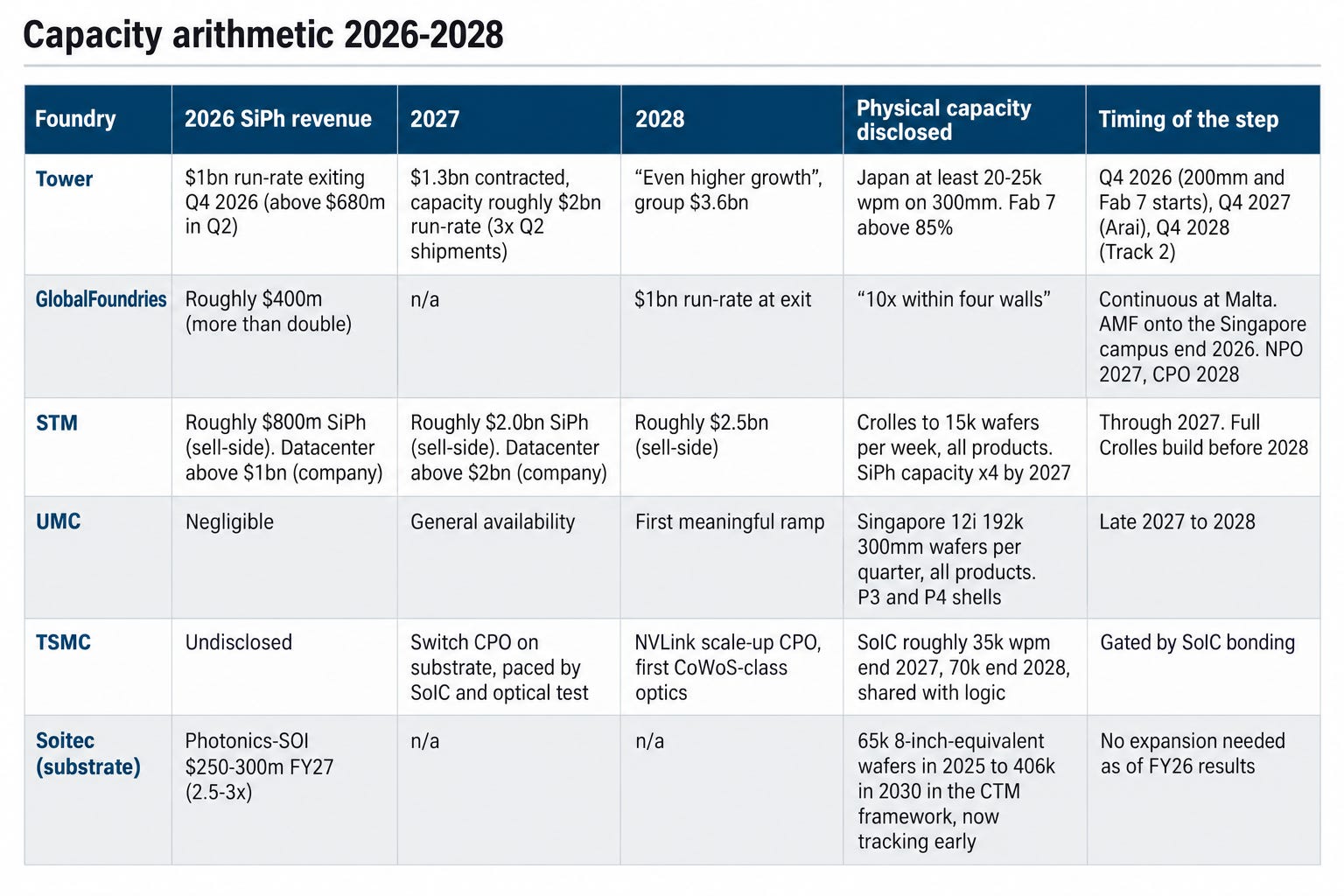

12. Capacity arithmetic 2026-2028
No foundry discloses SiPh wafers per month, so the arithmetic has to be done in revenue run-rates and the few physical numbers that exist. Treat the numbers as orders of magnitude.
Putting STM on a wafer basis. STM’s $2bn of 2027 SiPh revenue in sell-side models is an IDM number: PIC plus BiCMOS EIC plus MCU at IDM pricing. Two chips of the three are silicon photonics, and a merchant foundry would sell only the PIC wafer. Using the module bill-of-materials split (two PICs at roughly $70 in a 1.6T module against a $341 total, and the EIC and MCU at a similar combined value) and applying a foundry wafer margin rather than an IDM chip margin, roughly 40-50% of ST’s SiPh line is PIC value, and roughly 60-70% of that PIC value is what a foundry would book. On that basis STM’s 2027 SiPh revenue is roughly $0.6-0.8bn on a Tower-comparable footing, which puts it level with GlobalFoundries’ 2028 exit run-rate but behind Tower’s 2027 contract book. The headline claim in section 2 survives in the softer form: STM is the third merchant supplier at Tower’s scale, not a hidden number one. That is still a claim no map makes.

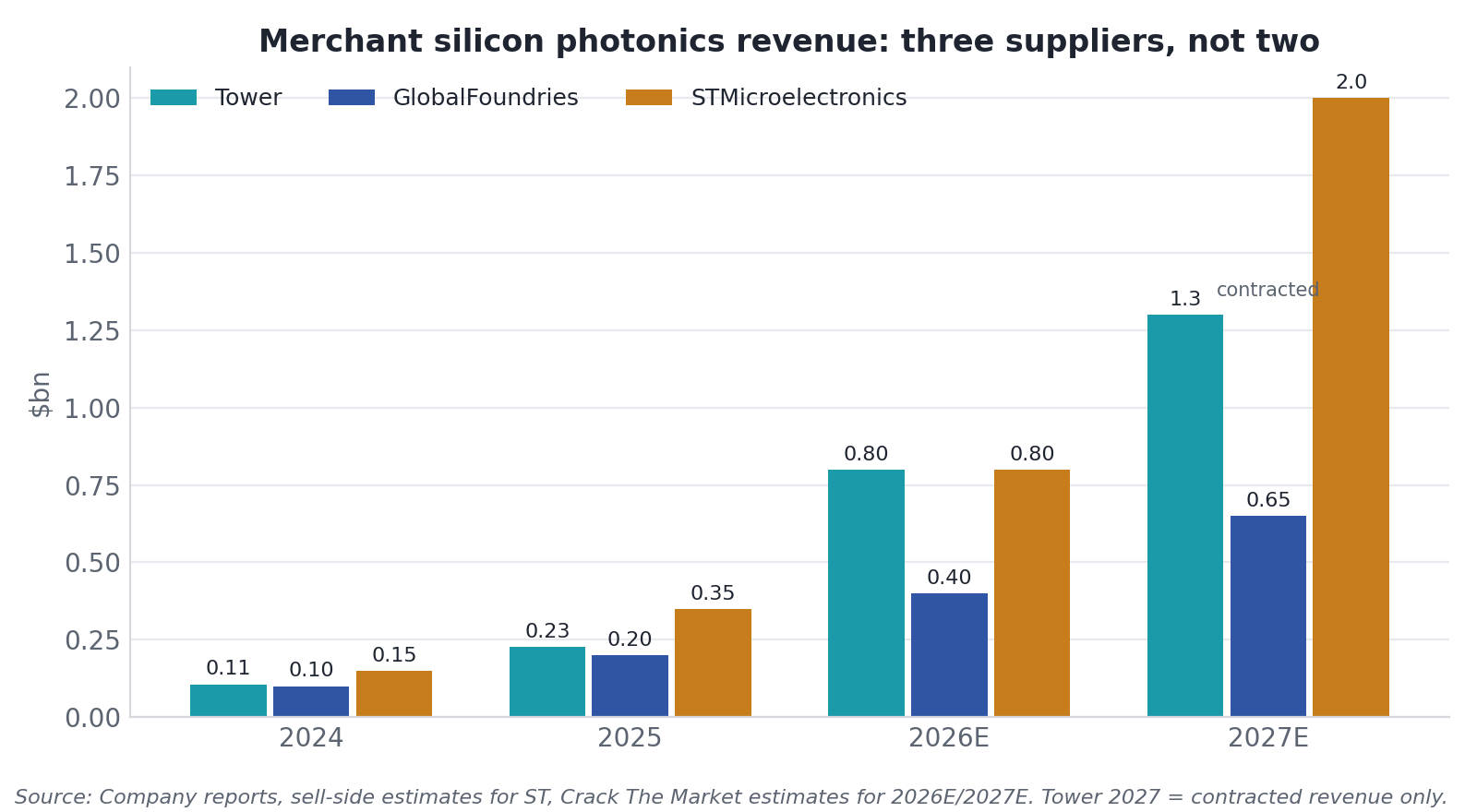

The sum. Merchant SiPh revenue on that comparable basis (Tower, GlobalFoundries, STM wafer-equivalent, UMC) runs from roughly $1.5bn in 2026 to roughly $2.8bn in 2027, against a SiPh wafer SAM that GlobalFoundries’ own slide puts at roughly $0.7bn in 2026 rising to roughly $6.5bn by 2032. The 2026 numbers do not reconcile: the merchant tier is already booking about twice the wafer SAM the industry slide shows for the year. Either the SAM slide is stale (it predates the Tower and STM raises) or it counts only the PIC die at a lower price point. Both are plausible and neither changes the conclusion that the 2028 capacity is priced for a demand curve that must keep steepening.
The physical cross-check. Tower’s Japan minimum of 20-25k wpm on 300mm is equivalent to 45-56k 200mm wafers a month on the 2.25x conversion. Soitec’s 2025 base of roughly 65k 8-inch-equivalent Photonics-SOI wafers a year, about 5.4k a month across all customers, says the whole industry ran on a small fraction of what Tower alone plans to add. The September guidance closes part of that gap: Soitec’s FY27 volumes roughly triple, so the run-rate is heading towards 15-20k 8-inch-equivalent wafers a month by early 2027, and at the same growth rate reaches the equivalent of the Japan programme alone by 2028. What the two series say together is that Tower’s Japan capacity is not all SiPh in its first two years, and that Soitec’s “no expansion needed” line will be tested by the end of 2027.
The demand-side cross-check. Section 11 does the arithmetic: about 110m SiPh modules in 2030, two PICs per module and about 1,000 good dies per 300mm wafer come to roughly 18k wpm industry-wide, in a range of 9-37k depending on those two inputs. On the base case, Tower’s Japan minimum alone exceeds the whole industry’s 2030 wafer need. Add GlobalFoundries, STM and UMC, and the risk in 2028 is overcapacity rather than shortage, unless PIC counts per module or die sizes rise at 3.2T.

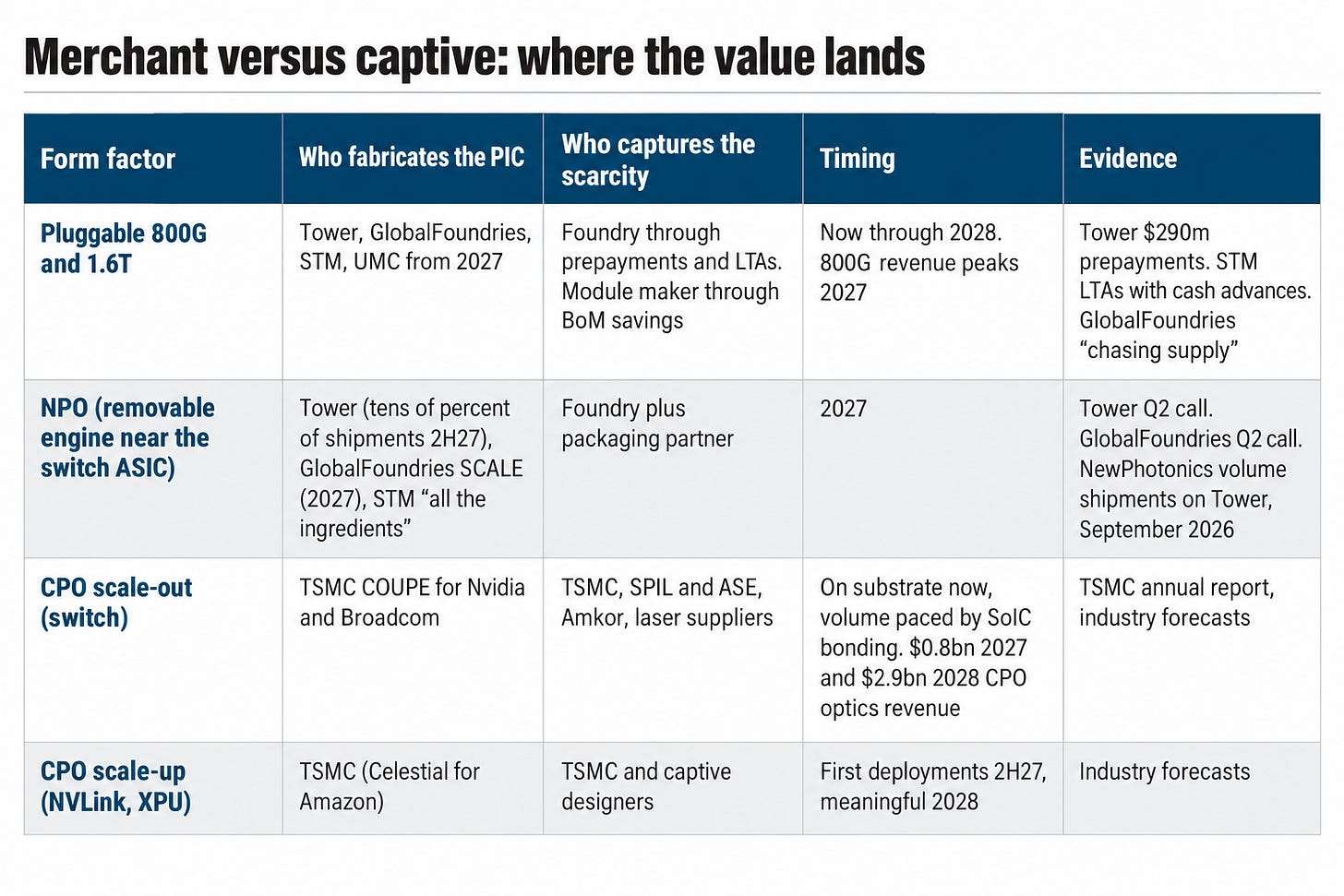

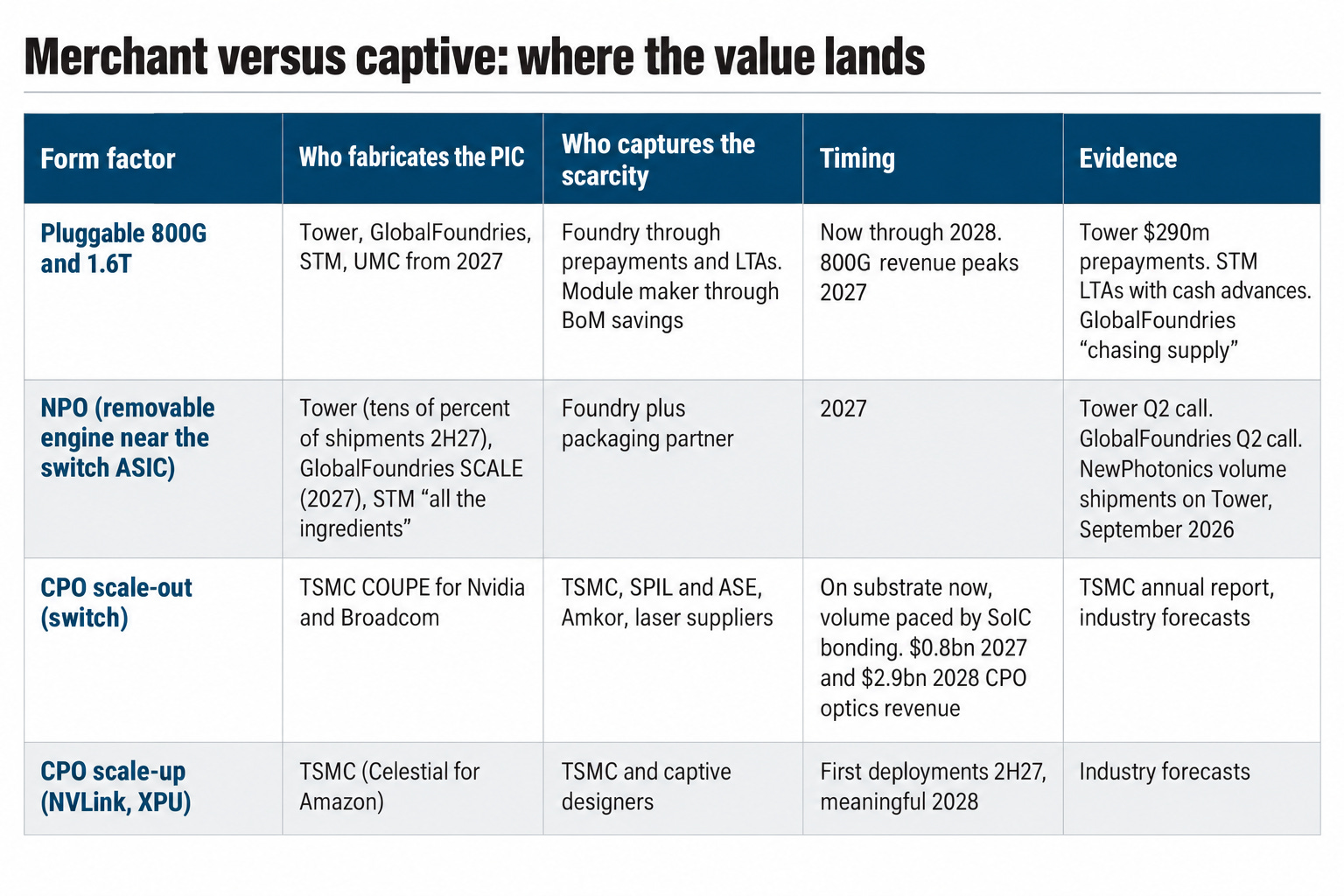

13. Merchant versus captive: where the value lands
The layer splits by form factor, not by technology. Pluggables are a merchant market with three suppliers taking prepayments. CPO is a captive market with one supplier allocating packaging slots. NPO is the contested middle.
The mechanism. PhotonCap’s June framing stands: pricing power belongs to the layer where customers put down prepayments, and in 2026 that is the merchant foundry and the substrate, not the laser. What this piece adds is that the mechanism has a shelf life set by two dates: the 2027-28 arrival of four 300mm expansions, and the point at which CPO volume moves the optical engine from a merchant wafer sold to a module maker into a TSMC 3DFabric slot sold to a switch vendor. GlobalFoundries’ own numbers say pluggables carry it to the $1bn run-rate and CPO is small until then. Tower’s say all 300mm growth after mid-2028 is SiPh. Both are betting that pluggables and NPO outlast the merchant capacity wave.
Value capture by layer, 2026-28. Highest and most durable: Soitec, single-source substrate, prepaid reservations with eight of ten major customers, no expansion needed. High but time-limited: Tower (contracted 2027, prepaid, 67% incremental gross margin) and STM (LTAs, accretive margin, but AWS concentration and a post-2027 flattening in the models). Medium: GlobalFoundries (scale and government co-funding, but mobile drag and lost CPO customers). Optionality only: UMC, X-FAB, Samsung. Indirect: TSMC, whose photonics value shows up in SoIC today and CoWoS later, and ASE and Amkor, whose value rises with CPO. The laser layer sits alongside rather than inside this map and is at least as constrained.
14. Where the thesis breaks
Wafer pricing in 2028. Tower’s CFO: the selling price per wafer is the largest variable in the model and “the selling price is just 100% reflection over the margin”. Four 300mm expansions and a share-hungry UMC land in 2027-28. If demand does not keep steepening, the eight points of gross margin Tower added in a year (30% in Q2 2026 against about 22% a year earlier) come back out.
The 200mm to 300mm requalification. Tower’s customer base was built on PH18 on 200mm. The growth is on PH45 and Arai on 300mm. Every PDK change is a redesign opportunity for the customer to dual-source at GlobalFoundries, STM or UMC. STM says 300mm lets it add capacity without requalification. Tower’s transition is the reverse case.
CPO goes captive faster than pluggables grow. If Rubin Ultra and Tomahawk 6 pull scale-out optics into COUPE engines faster than expected, and the 400G per lane contest between CPO and NPO (section 6) goes to CPO, the merchant tier’s 2028 capacity is built for a market that moved. Industry forecasts have two-thirds of 3.2T ports on CPO by 2030.
The contract book is thinner than it looks. Tower’s $1.3bn is contracted. The other third of 2027 capacity is “spoken for”. GlobalFoundries names no SiPh customer directly. STM’s LTAs are volumes and pricing, and hyperscalers have cancelled optics orders before (2022-23). A capex reset turns prepaid capacity into overcapacity, and Tower’s prepayments cushion it least where the capacity is newest.
Soitec risks losing the monopoly earlier. GlobalWafers is shipping 300mm SOI and wants photonics. A six to twelve month qualification at any of the four merchant foundries during a capacity build is exactly when a second source gets qualified. Ozeco’s model drifts share to 80% by 2030. The risk is that it happens by 2028.
The InP constraint does not ease. If 6-inch InP at Coherent and Greensboro slips, the CW laser supply that SiPh pluggables depend on stays rationed by Nvidia’s capacity rights, and merchant foundry wafers ship without light sources. Tower’s IQE agreement and its in-house laser integration are the only foundry-level hedges in the map.
TFLN and SiN arrive early. LightCounting has TFLN barely visible in 2026 and appearing in 2027 DWDM. UMC has a TFLN modulator in production and a hybrid PIC in risk production Q2 2027. GlobalFoundries’ government money funds BTO and TFLN modulators. If 400G per lane needs non-silicon modulators, the platform advantage shifts to whoever integrates them first, and the 200mm specialty fabs re-enter the volume story.
Israel concentration. Tower’s SiPh base is Migdal HaEmek until Japan scales, and management cites geopolitical neutrality as a reason for Japan.
Our own measurement risk. The revenue series are not like-for-like until STM is put on a wafer basis, and the Soitec wafer count against Tower’s Japan capacity only reconciles with the September guidance. Publishing before both are pinned down would repeat the sell-side’s error of counting the layer without measuring it.
15. Names by layer
Scenario mapping, extending PhotonCap’s June table:
The base case (demand overhang through 2027) favours Soitec, Tower, STM and GlobalFoundries in that order of signal quality.
CPO acceleration favours TSMC, ASE and SPIL, Amkor and the test names, and is a relative headwind for Tower and GlobalFoundries.
A capex reset is cushioned by contracted revenue at Tower and STM and hurts UMC, X-FAB and Samsung most, with Soitec’s 50% loading the least exposed to overbuild.
16. Conclusion
The optical transition is becoming consensus, and the market has started to price the lasers. What it hasn’t fully mapped yet is the layer that turns those lasers into links.
Today, only six companies can fabricate a datacom PIC at scale. Three are already taking prepayments. One sells only through its own bonding line. All six are building 300mm capacity, and most of that capacity lands within the same eighteen-month window.
And underneath every one of those fabs sits the same substrate supplier.
In the base case, the merchant foundries and Soitec capture the scarcity through 2027. From 2028, the question becomes whether pluggables and NPO can keep enough volume in the merchant tier to absorb all the capacity being built, or whether co-packaged optics eventually pulls that manufacturing inside TSMC’s walls.
The scarce asset is the capacity to fabricate the PIC.
The scarcer one is the wafer you fabricate it on.
Disclaimer
This article is an independent technical analysis published by PhotonCap and Crack The Market (Ozeco), based on an engineering perspective. All content is derived from publicly available information and is intended solely for educational and informational purposes. In other words, nothing in this material should be construed as a recommendation to buy, sell, or hold any specific securities. Please note this carefully. The author may hold positions in the securities mentioned herein and reserves the right to trade such securities at any time without prior notice. Readers should conduct their own thorough review and research before making any investment decisions.
https://semiconductor-today.com/news_items/2026/sep/aeluma-scat-150926.shtml
This could be an interesting development in relation to InP
